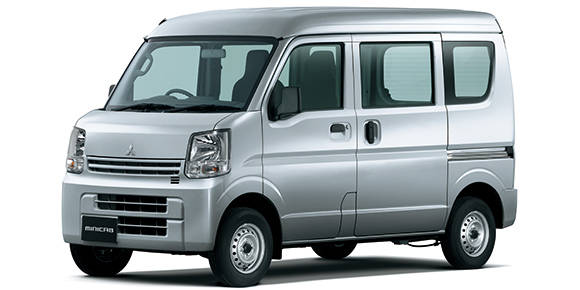

MITSUBISHI MINICAB VAN M

MITSUBISHI MINICAB VAN

DS17V · M

Description

Modification: M
Chassis ID: DS17V
Dates releasing: 2019.10~
Base price, ¥: HBD-DS17V
Body size: 3395x1475x1895
Interior (LxWxH): ----x----x----
Wheelbase: 2430
Track f/r: 1310mm/1290mm
Full weight, kg: 890
Body type: Kei-cab van
Doors / seats: 5 door / 2

Safe equipment

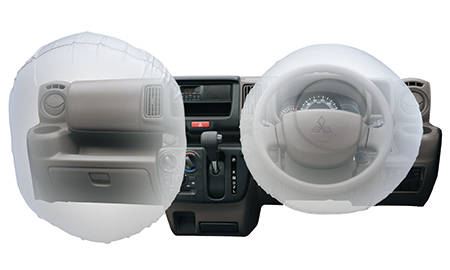

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ×
Additional equipment: ×

Comfort

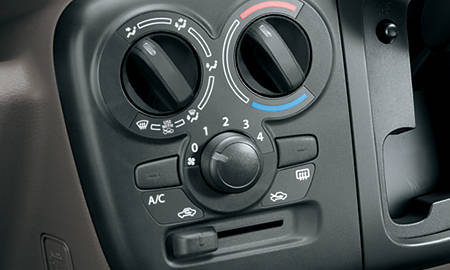

Air conditioner: Manual
Power window: ×
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: R06A
Type: water cooling inline 3 cylinder DOHC 12-valves
Bore x stroke, mm: 64.0x68.2
Engine size, cc: 658
Compression ratio: 11.0
Fuel injection: 電子制御燃料噴射装置
Max power, hp/rpm: 49ps(36kW)/5700rpm
Max torque, Nm/rpm: 6.3kg m(62N m)/3500rpm
Supercharger: ×
Fuel tank, liters: 37 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 5.7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: ITL
Front brake: disk
Rear brake: Drum
Front wheel: 145/80R12 80/78N LT
Rear wheel: 145/80R12 80/78N LT
Min turn diameter, m: 4.1

Gearbox

Number of stages: 5MT

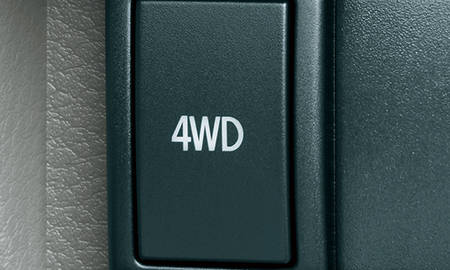

Drive: Part-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not

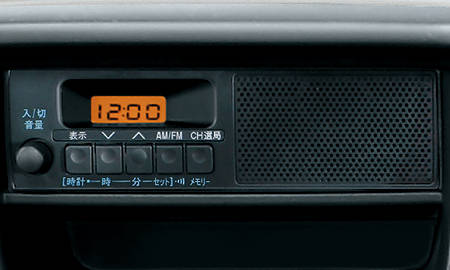

Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	5.106	3.017	1.908	1.264	1.000	—	—	—	5.151

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Silver metallicRedBlueDark cyanPearlGold
