JDM Vehicle Catalog

Vehicle Specs

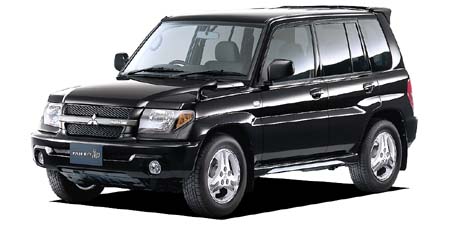

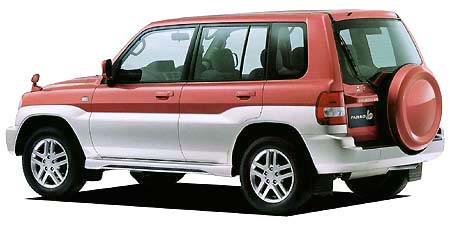

MITSUBISHI PAJERO IO TR

MITSUBISHI PAJERO IO

H76W · TR

Description

Modification: TR
Chassis ID: H76W
Dates releasing: 2004.4~
Base price, ¥: TA-H76W
Body size: 3975x1680x1690
Interior (LxWxH): 1620x1400x1225
Wheelbase: 2450
Track f/r: 1435mm/1445mm
Full weight, kg: 1410
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 4G93(GDI)
Type: inline 4 cylinder DOHC 16-valves IC-turbo
Bore x stroke, mm: 81.0x89.0
Engine size, cc: 1834
Compression ratio: 10.0
Fuel injection: ガソリン筒内直接噴射
Max power, hp/rpm: 160ps(118kW)/5200rpm
Max torque, Nm/rpm: 22.4kg m(220N m)/3500rpm
Supercharger: IC turbo
Fuel tank, liters: 53 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type / Coil spring
Rear suspension: 5-link / Coil spring
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 215/65R16
Rear wheel: 215/65R16
Min turn diameter, m: 5.2

Gearbox

Number of stages: 4AT
Drive: Full-time 4WD
LSD: ◯

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ◯
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: DVD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.826	1.493	1.000	0.730	—	—	—	—	2.703

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Cool Silver MetallicRed / Other RedBlueDark cyanPearl / Other PearlGold
