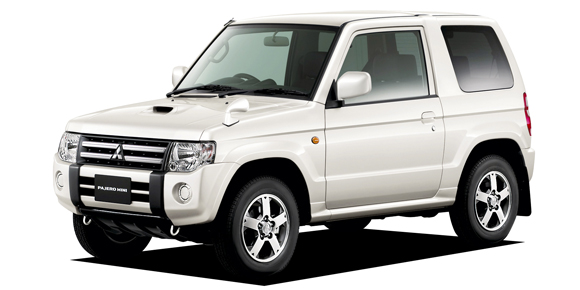

MITSUBISHI PAJERO MINI NAVI EDITION XR

MITSUBISHI PAJERO MINI

H53A · NAVI EDITION XR

Description

Modification: NAVI EDITION XR
Chassis ID: H53A
Dates releasing: 2010.8~
Base price, ¥: ABA-H53A
Body size: 3395x1475x1635
Interior (LxWxH): 1665x1220x1210
Wheelbase: 2280
Track f/r: 1270mm/1270mm
Full weight, kg: 900
Body type: Key SUV
Doors / seats: 3 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ×
Anti-theft device: ✓
Additional equipment: ×

Comfort

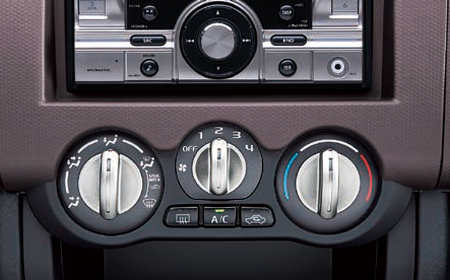

Air conditioner: Manual

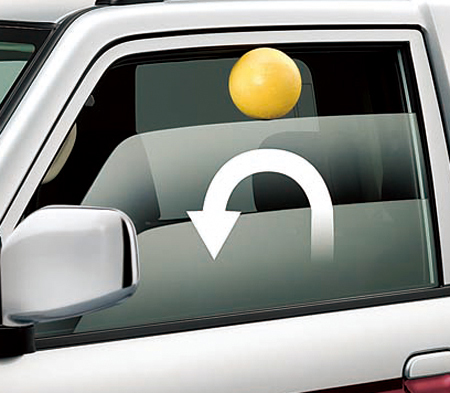

Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×

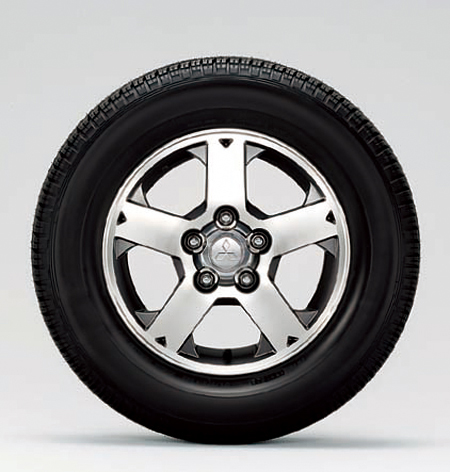

Alloy wheels: 15 inches standard

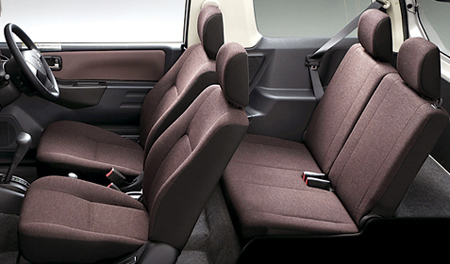

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 4A30
Type: inline 4 cylinder SOHC 16-valves
Bore x stroke, mm: 60.0x58.3
Engine size, cc: 659
Compression ratio: 10.2
Fuel injection: ECI-MULTI(電子制御燃料噴射)
Max power, hp/rpm: 52ps(38kW)/6500rpm
Max torque, Nm/rpm: 6.3kg m(62N m)/4500rpm
Supercharger: ×
Fuel tank, liters: 43 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

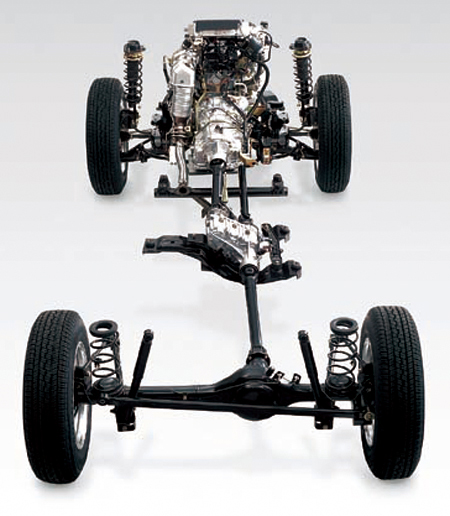

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: 5-link Coil spring
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 175/80R15
Rear wheel: 175/80R15
Min turn diameter, m: 4.8

Gearbox

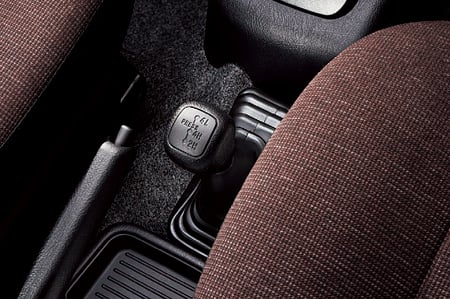

Number of stages: 4AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ◯
Wiper: ✓

Navigation & sound

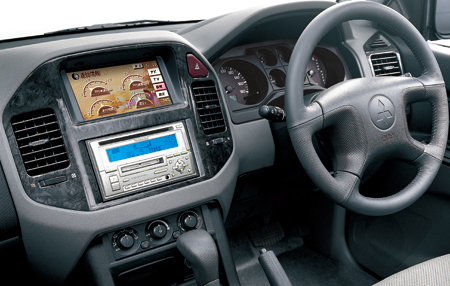

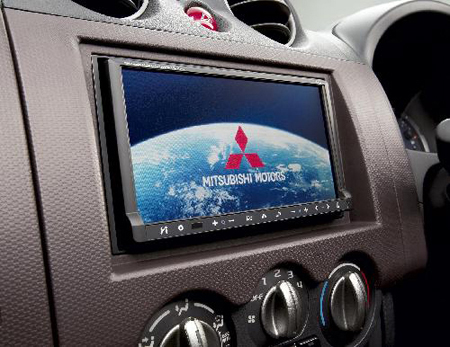

Navigation: ✓
Navigation device: メモ

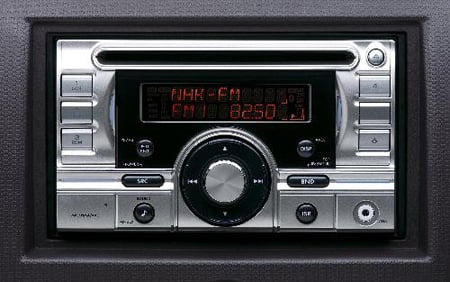

Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.846	1.581	1.000	0.685	—	—	—	—	2.176

Available colors

black / black mica / Other blackwhitegreenMaroon (brown)OliveNavy blue / Dark blue mica / Other Navy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Cool Silver MetallicRed / Other RedBlueDark cyanPearl / Beige metallicGold
