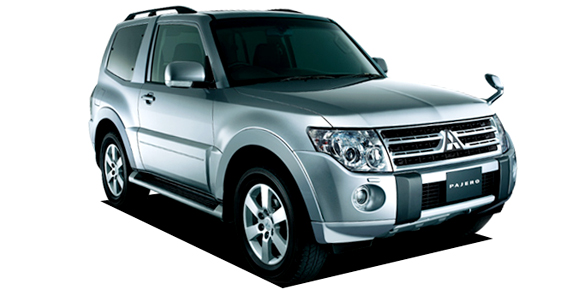

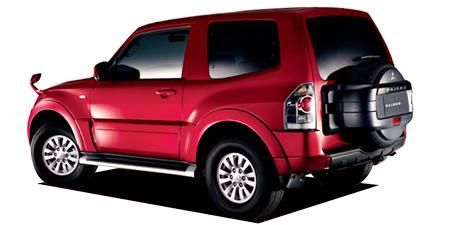

MITSUBISHI PAJERO SHORT VR-II

MITSUBISHI PAJERO

V88W · SHORT VR-II

Description

Modification: SHORT VR-II
Chassis ID: V88W
Dates releasing: 2010.9~
Base price, ¥: LDA-V88W
Body size: 4385x1875x1850
Interior (LxWxH): 1830x1525x1225
Wheelbase: 2545
Track f/r: 1560mm/1560mm
Full weight, kg: 2110
Body type: SUV
Doors / seats: 3 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ×

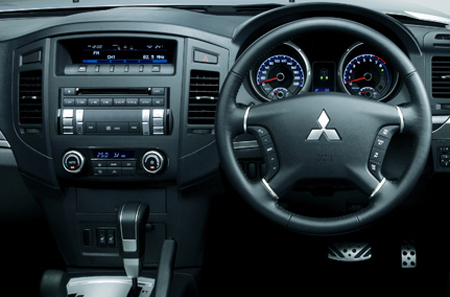

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: 18 inches standard

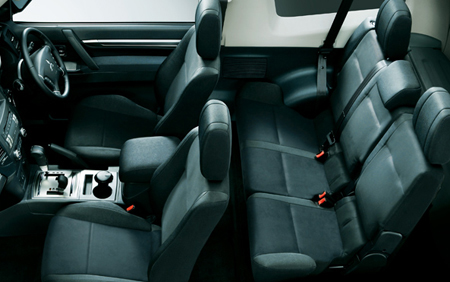

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

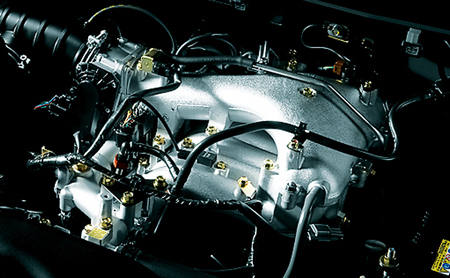

Engine

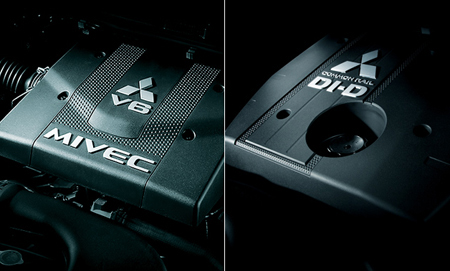

Model: 4M41(コモンレール type DI-D
Type: inline 4 cylinder DOHC 16-valves IC-turbo (Diesel)
Bore x stroke, mm: 98.5x105.0
Engine size, cc: 3200
Compression ratio: 16.0
Fuel injection: コモンレール type 燃料噴射装置
Max power, hp/rpm: 190ps(140kW)/3500rpm
Max torque, Nm/rpm: 45.0kg m(441N m)/2000rpm
Supercharger: IC turbo
Fuel tank, liters: 69 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone Coil spring type Independent suspension
Rear suspension: Multi-link Double wishbone Coil spring type Independent suspension
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 265/60R18
Rear wheel: 265/60R18
Min turn diameter, m: 5.3

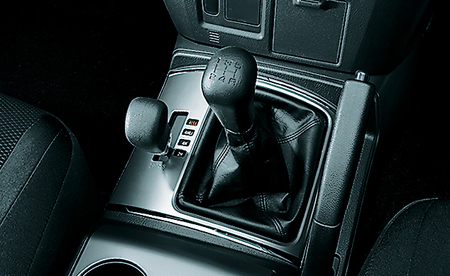

Gearbox

Number of stages: 5AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ✓
Extra front lights: ✓
Spoilers (f / r): × / ×
Wiper: ✓

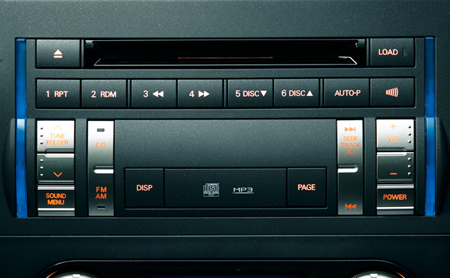

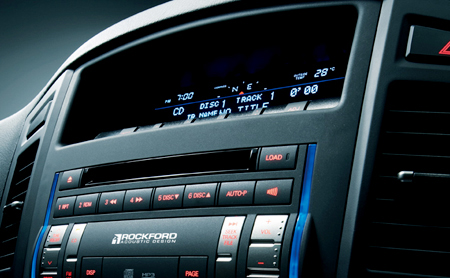

Navigation & sound

Navigation: ◯
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.520	2.042	1.400	1.000	0.716	—	—	—	3.224

Available colors

black / black micawhitegreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Cool Silver MetallicYellowYellow-greenBlack (P)MagentaSilverRed / Other RedBlueDark cyanPearl / Other PearlGold
