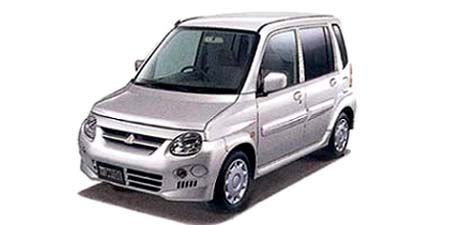

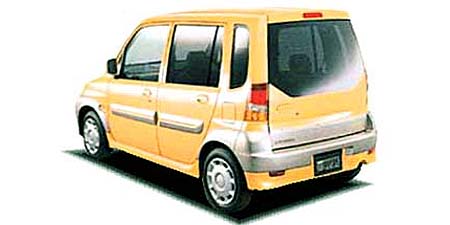

MITSUBISHI TOPPO BJ WIDE BASEGRADE

MITSUBISHI TOPPO BJ WIDE

H43A · BASEGRADE

Description

Modification: BASEGRADE
Chassis ID: H43A
Dates releasing: 1999.1~
Base price, ¥: GF-H43A
Body size: 3540x1555x1710
Interior (LxWxH): 1715x1220x1425
Wheelbase: 2340
Track f/r: 1315mm/1310mm
Full weight, kg: 870
Body type: MV 1Box
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ◯
Side airbags: ×
ABS: ◯
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 4A31
Type: inline 4 cylinder SOHC 16-valves
Bore x stroke, mm: 66.0x80.0
Engine size, cc: 1094
Compression ratio: 9.5
Fuel injection: ECIマルチ(電子制御燃料噴射)
Max power, hp/rpm: 78ps(57kW)/6000rpm
Max torque, Nm/rpm: 10.5kg m(103.0N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 30 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut
Rear suspension: トルクアーム type 3リンク
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 165/65R14
Rear wheel: 165/65R14
Min turn diameter, m: 4.6

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ◯

Navigation & sound

Navigation: ◯
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.846	1.581	1.000	0.685	—	—	—	—	2.176

Available colors

blackwhite / Other whitegreen / Other greenMaroon (brown)OliveNavy bluePurpleAshesYellow / Other YellowYellow-greenBlack (P)MagentaSilverRedBlue / Other BlueDark cyanPearlGold / Other Gold
