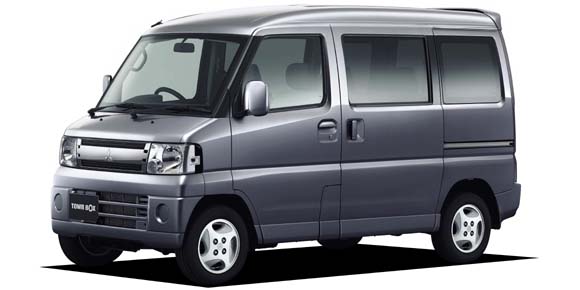

MITSUBISHI TOWN BOX RX EXCEED PACKAGE

MITSUBISHI TOWN BOX

U61W · RX EXCEED PACKAGE

Description

Modification: RX EXCEED PACKAGE
Chassis ID: U61W
Dates releasing: 2007.12~
Base price, ¥: ABA-U61W
Body size: 3395x1475x1905
Interior (LxWxH): 1885x1220x1325
Wheelbase: 2390
Track f/r: 1290mm/1290mm
Full weight, kg: 970
Body type: Key SUV
Doors / seats: 5 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ◯
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: 採用
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

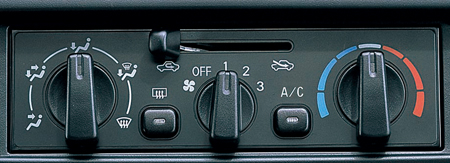

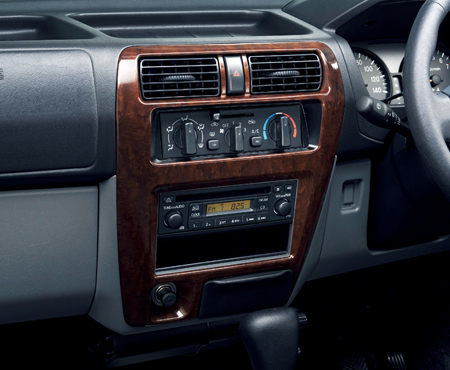

Air conditioner: Manual

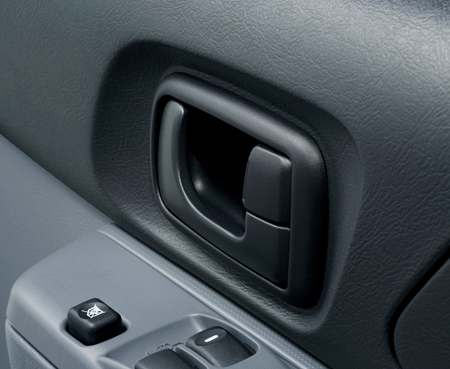

Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×

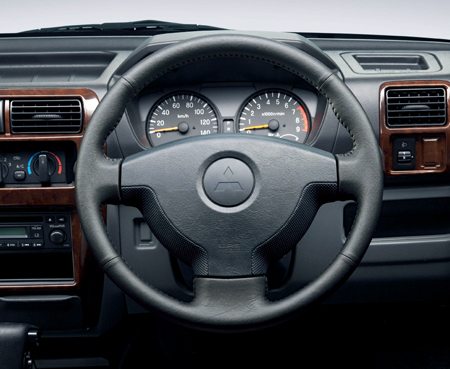

Wood panel: ✓
Sunroof: ×
Alloy wheels: 13 inches standard

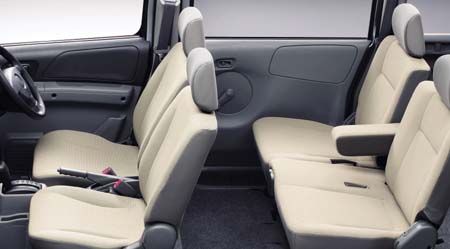

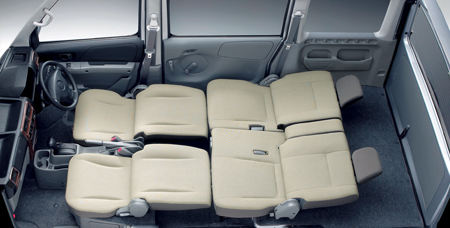

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 3G83(インタークーラ&#1
Type: inline 3 cylinder SOHC 12-valves IC-turbo
Bore x stroke, mm: 65.0x66.0
Engine size, cc: 657
Compression ratio: 8.5
Fuel injection: ECI-MULTI(電子制御燃料噴射)
Max power, hp/rpm: 64ps(47kW)/6000rpm
Max torque, Nm/rpm: 8.8kg m(86N m)/3000rpm
Supercharger: IC turbo
Fuel tank, liters: 40 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: 3-link Coil spring
Front brake: disk
Rear brake: Drum
Front wheel: 165/65R13
Rear wheel: 165/65R13
Min turn diameter, m: 4.7

Gearbox

Number of stages: 5MT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not

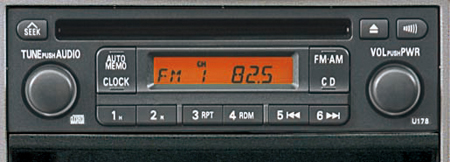

Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.200	2.450	1.524	1.000	0.807	—	—	—	3.776

Available colors

black / black micawhite / White solidgreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold
