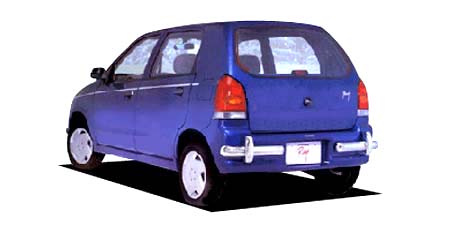

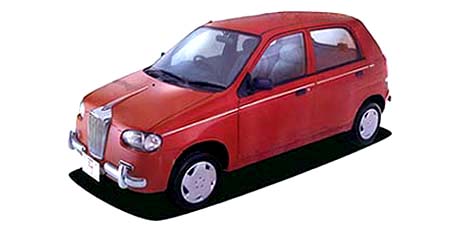

MITSUOKA RAY BASE GRADE

MITSUOKA RAY

— · BASE GRADE

Description

Modification: BASE GRADE
Chassis ID: —
Dates releasing: 1999.9~
Base price, ¥: ----
Body size: 3510x1475x1450
Interior (LxWxH): 1700x1220x1200
Wheelbase: 2360
Track f/r: 1295mm/1290mm
Full weight, kg: ----
Body type: Hatch
Doors / seats: 3 door / 4

Safe equipment

Driver's air bag: ◯
Front passenger air bag: ◯
Side airbags: ×
ABS: ◯
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ◯
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: 一体
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: F6A
Type: water cooling inline 3 cylinder SOHC 12-valves
Bore x stroke, mm: 65.0x66.0
Engine size, cc: 657
Compression ratio: 10.5
Fuel injection: EPI(電子制御燃料噴射装置)
Max power, hp/rpm: 46ps(34kW)/5800rpm
Max torque, Nm/rpm: 5.8kg m(56.9N m)/4500rpm
Supercharger: ×
Fuel tank, liters: 30 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: ITL
Front brake: disk
Rear brake: Drum
Front wheel: 155/65R13 73S
Rear wheel: 155/65R13 73S
Min turn diameter, m: 4.2

Gearbox

Number of stages: 3AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ◯
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

blackwhite / Superior WhitegreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Silver metallicRed / Other RedBlueDark cyanPearlGold
