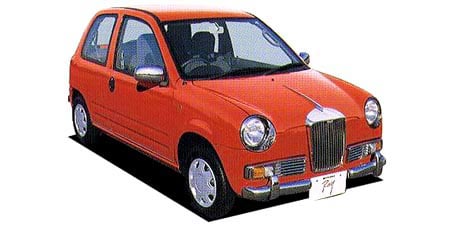

MITSUOKA RAY DELUXE

MITSUOKA RAY

— · DELUXE

Description

Modification: DELUXE
Chassis ID: —
Dates releasing: 1996.12~
Base price, ¥: ----
Body size: 3295x1395x1425
Interior (LxWxH): 1650x1210x1180
Wheelbase: 2335
Track f/r: 1215mm/1200mm
Full weight, kg: 685
Body type: Kei car
Doors / seats: 3 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ×
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ✓
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: 一体
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: F6A
Type: water cooling inline 3 cylinder OHC 12-valves
Bore x stroke, mm: 65.0x66.0
Engine size, cc: 657
Compression ratio: 10.5
Fuel injection: 複合可変ベンチュリーキャブレター
Max power, hp/rpm: 52ps(38kW)/7000rpm
Max torque, Nm/rpm: 5.7kg m(56N m)/4500rpm
Supercharger: ×
Fuel tank, liters: 30 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: I.T.L.(アイソレーティッドトレーリング
Front brake: disk
Rear brake: Drum
Front wheel: 155/70R12 73S
Rear wheel: 155/70R12 73S
Min turn diameter, m: 4.6

Gearbox

Number of stages: 5MT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

blackwhitegreen / Other greenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellow / Other YellowYellow-greenBlack (P)Magenta / Other MagentaSilverRedBlueDark cyanPearlGold
