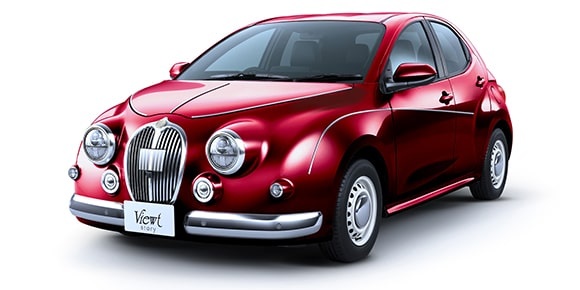

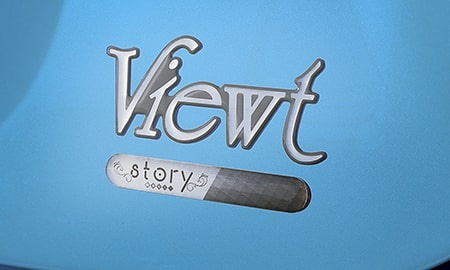

MITSUOKA VIEWT STORY 10LX

MITSUOKA VIEWT STORY

KSP210 · 10LX

Description

Modification: 10LX
Chassis ID: KSP210
Dates releasing: 2024.2~
Base price, ¥: 5BA-KSP210
Body size: 4090x1695x1495
Interior (LxWxH): 1845x1430x1190
Wheelbase: 2550
Track f/r: 1490mm/1485mm
Full weight, kg: 1010
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: S-VSC

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 1KR-FE
Type: inline 3 cylinder
Bore x stroke, mm: 71.0x83.9
Engine size, cc: 996
Compression ratio: ----
Fuel injection: 電子制御 type 燃料噴射装置(EFI)
Max power, hp/rpm: 69ps(51kW)/6000rpm
Max torque, Nm/rpm: 9.4kg m(92N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 40 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Drum

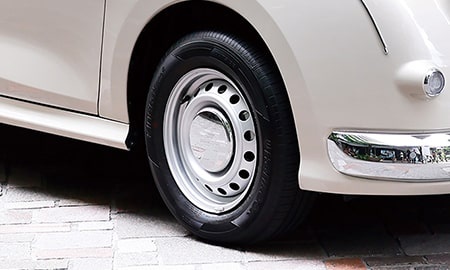

Front wheel: 175/70R14
Rear wheel: 175/70R14
Min turn diameter, m: 4.8

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: It is not
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.562~0.392	—	—	—	—	—	—	—	—	3.115~1.945

Available colors

black / Other blackwhitegreenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-green / Other Yellow-greenBlack (P) / Other Black (P)MagentaSilverRed / Other RedBlueDark cyanPearl / Other PearlGold / Other Gold
