MITSUOKA VIEWT FINAL MODEL LIMITED 10TH ANNIVERSARY

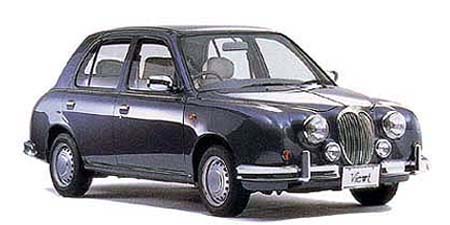

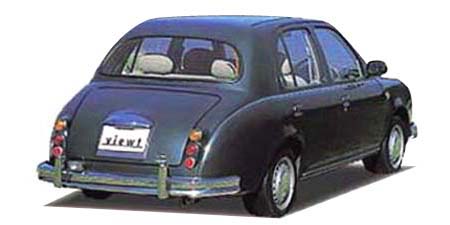

MITSUOKA VIEWT

AK11 · FINAL MODEL LIMITED 10TH ANNIVERSARY

Description

Modification: FINAL MODEL LIMITED 10TH ANNIVERSARY
Chassis ID: AK11
Dates releasing: 2001.11~
Base price, ¥: TA-AK11
Body size: 4270x1640x1420
Interior (LxWxH): 1705x1290x1180
Wheelbase: 2360
Track f/r: 1365mm/1325mm
Full weight, kg: 950
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ◯
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: 一体
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: CG13DE
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 71.0x80.5
Engine size, cc: 1348
Compression ratio: 9.5
Fuel injection: 電子制御燃料噴射
Max power, hp/rpm: 79ps(58kW)/6000rpm
Max torque, Nm/rpm: 10.8kg m(105.9N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 42 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Independent suspension Strut type
Rear suspension: 5リンクコイル
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 165/70R13 79S
Rear wheel: 165/70R13 79S
Min turn diameter, m: 4.8

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / Black Metallicwhite / Other whitegreen / Other greenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlue / Other BlueDark cyanPearlGold
