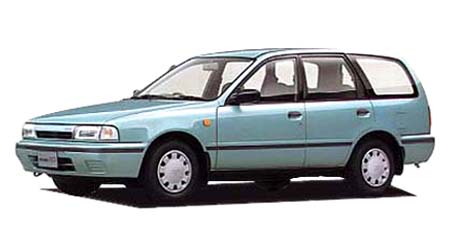

NISSAN AD WAGON LE

NISSAN AD WAGON

WSY10 · LE

Description

Modification: LE
Chassis ID: WSY10
Dates releasing: 1991.11~
Base price, ¥: X-WSY10
Body size: 4175x1665x1480
Interior (LxWxH): 1700x1390x1205
Wheelbase: 2400
Track f/r: 1445mm/1445mm
Full weight, kg: 1050
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ×
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: CD17
Type: water cooling inline 4 cylinder OHC (Diesel)
Bore x stroke, mm: 80.0x83.6
Engine size, cc: 1680
Compression ratio: 21.8
Fuel injection: ボッシュ type 分配型噴射ポンプ
Max power, hp/rpm: 55ps(40kW)/4800rpm
Max torque, Nm/rpm: 10.6kg m(103.9N m)/2800rpm
Supercharger: ×
Fuel tank, liters: 50 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Independent suspension Strut type
Rear suspension: Torsion beam
Front brake: disk
Rear brake: Drum
Front wheel: 155SR13
Rear wheel: 155SR13
Min turn diameter, m: 4.8

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.861	1.562	1.000	0.697	—	—	—	—	2.310

Available colors

blackwhite / Other whitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyan / Other Dark cyanPearlGold
