JDM Vehicle Catalog

Vehicle Specs

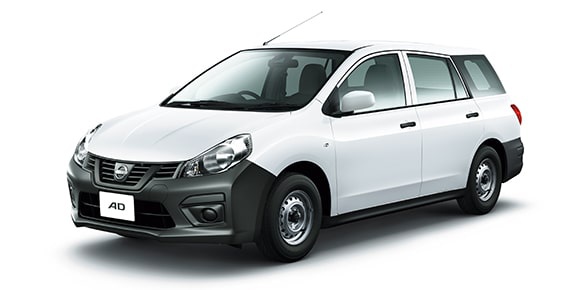

NISSAN AD DX

NISSAN AD

VY12 · DX

Description

Modification: DX
Chassis ID: VY12
Dates releasing: 2023.4~
Base price, ¥: 5BF-VY12
Body size: 4395x1695x1500
Interior (LxWxH): ----x----x----
Wheelbase: 2600
Track f/r: 1480mm/1500mm
Full weight, kg: 1140
Body type: Bonnet van
Doors / seats: 5 door / 2

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ◯
Additional equipment: VDC(ビークルダイナミクスコントロール)

Comfort

Air conditioner: Manual
Power window: ×
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: 一体
Glass w/ UV filter: ✓
Toned glasses: ◯

Engine

Model: HR15DE
Type: water cooling inline 4 cylinder DOHC
Bore x stroke, mm: 78.0x78.4
Engine size, cc: 1498
Compression ratio: 10.5
Fuel injection: ニッサンEGI(ECCS)電子制御燃料噴射装置
Max power, hp/rpm: 110ps(81kW)/6000rpm
Max torque, Nm/rpm: 14.9kg m(146N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 45 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 5.3

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 165/80R13
Rear wheel: 165/80R13
Min turn diameter, m: 4.7

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ◯

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
4.006~0.458	—	—	—	—	—	—	—	—	3.770

Available colors

blackwhitegreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Sonic Chrome Brilliant Silver (M)RedBlueDark cyanPearlGold
