JDM Vehicle Catalog

Vehicle Specs

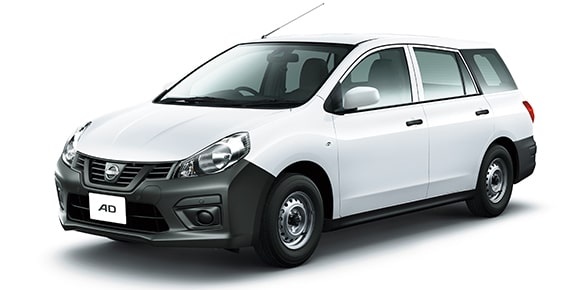

NISSAN AD VE

NISSAN AD

VZNY12 · VE

Description

Modification: VE
Chassis ID: VZNY12
Dates releasing: 2024.3~
Base price, ¥: 3BF-VZNY12
Body size: 4395x1695x1545
Interior (LxWxH): ----x----x----
Wheelbase: 2600
Track f/r: 1480mm/1475mm
Full weight, kg: 1230
Body type: Bonnet van
Doors / seats: 5 door / 2

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ◯
Additional equipment: VDC(ビークルダイナミクスコントロール)

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: 一体
Glass w/ UV filter: ✓
Toned glasses: ◯

Engine

Model: HR16DE
Type: water cooling inline 4 cylinder DOHC
Bore x stroke, mm: 78.0x83.6
Engine size, cc: 1597
Compression ratio: 9.8
Fuel injection: ニッサンEGI(ECCS)電子制御燃料噴射装置
Max power, hp/rpm: 113ps(83kW)/5600rpm
Max torque, Nm/rpm: 15.3kg m(150N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 42 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 7.3

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type
Rear suspension: トレーリングアーム type マルチリンク
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 165/80R14
Rear wheel: 165/80R14
Min turn diameter, m: 5.2

Gearbox

Number of stages: 4AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.861	1.562	1.000	0.697	—	—	—	—	2.310

Available colors

blackwhitegreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Sonic Chrome Brilliant Silver (M)RedBlueDark cyanPearlGold
