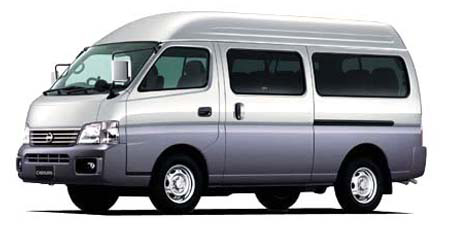

NISSAN CARAVAN COACH FIELD BASE X

NISSAN CARAVAN COACH

CWMGE25 · FIELD BASE X

Description

Modification: FIELD BASE X
Chassis ID: CWMGE25
Dates releasing: 2002.2~
Base price, ¥: KG-CWMGE25
Body size: 4990x1690x2275
Interior (LxWxH): ----x----x----
Wheelbase: 2715
Track f/r: 1470mm/1450mm
Full weight, kg: 2230
Body type: MV 1Box
Doors / seats: 4 door / 10

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ◯
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ◯

Engine

Model: ZD30DD
Type: water cooling inline 4 cylinder DOHC 16-valves (Diesel)
Bore x stroke, mm: 96.0x120.0
Engine size, cc: 2953
Compression ratio: 18.5
Fuel injection: EDI(電子制御燃料噴射装置)
Max power, hp/rpm: 105ps(77kW)/3800rpm
Max torque, Nm/rpm: 23.0kg m(226N m)/2000rpm
Supercharger: ×
Fuel tank, liters: 65 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone
Rear suspension: リジッドリーフ
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 195/80R15 103/101LT
Rear wheel: 195/80R15 107/105LT
Min turn diameter, m: 5.4

Gearbox

Number of stages: 4AT
Drive: Part-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: CD
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold
