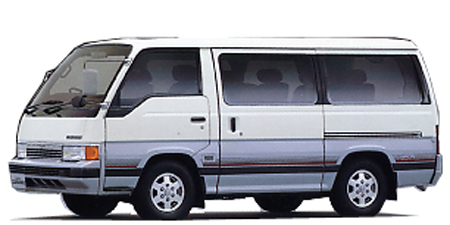

NISSAN CARAVAN COACH GL

NISSAN CARAVAN COACH

KSE24 · GL

Description

Modification: GL
Chassis ID: KSE24
Dates releasing: 1988.10~
Base price, ¥: Q-KSE24
Body size: 4520x1690x1965
Interior (LxWxH): 3265x1535x1335
Wheelbase: 2375
Track f/r: 1440mm/1405mm
Full weight, kg: 1600
Body type: MV 1Box
Doors / seats: 4 door / 9

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: ×
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: LD20T ?
Type: water cooling inline 4 cylinder OHCturbo (Diesel)
Bore x stroke, mm: 85.0x86.0
Engine size, cc: 1952
Compression ratio: 21.3
Fuel injection: ボッシュ type 分配型噴射ポンプ
Max power, hp/rpm: 79ps(58kW)/4400rpm
Max torque, Nm/rpm: 17.0kg m(166.7N m)/2400rpm
Supercharger: Turbo
Fuel tank, liters: 65 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone
Rear suspension: リジットリーフ
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 195SR14
Rear wheel: 195SR14
Min turn diameter, m: 4.8

Gearbox

Number of stages: 4AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.842	1.542	1.000	0.686	—	—	—	—	2.400

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold
