JDM Vehicle Catalog

Vehicle Specs

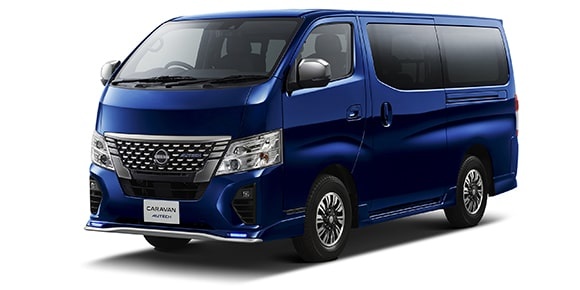

NISSAN CARAVAN AUTECH

NISSAN CARAVAN

VN6E26 · AUTECH

Description

Modification: AUTECH
Chassis ID: VN6E26
Dates releasing: 2024.6~
Base price, ¥: 3DF-VN6E26
Body size: 4695x1695x1990
Interior (LxWxH): ----x----x1320
Wheelbase: 2555
Track f/r: 1470mm/1450mm
Full weight, kg: 2110
Body type: Cab-over van
Doors / seats: 5 door / 2

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VDC(ビークルダイナミクスコントロール[TCS機能含む])

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 15 inches standard
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 4N16
Type: water cooling inline 4 cylinder DOHC (Diesel)
Bore x stroke, mm: 86.0x105.0
Engine size, cc: 2439
Compression ratio: 15.1
Fuel injection: EDI(電子制御燃料噴射装置)
Max power, hp/rpm: 132ps(97kW)/3250rpm
Max torque, Nm/rpm: 37.7kg m(370N m)/2000rpm
Supercharger: ×
Fuel tank, liters: 65 l
Fuel: Diesel
Fuel consumption, l/100km: 8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone
Rear suspension: リジッドリーフ
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 195/80R15
Rear wheel: 195/80R15
Min turn diameter, m: 5.7

Gearbox

Number of stages: 7AT
Drive: Part-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.886	3.169	2.027	1.411	1.000	0.864	0.774	—	4.041

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Dark metal gray (M)YellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearl / Other PearlGold
