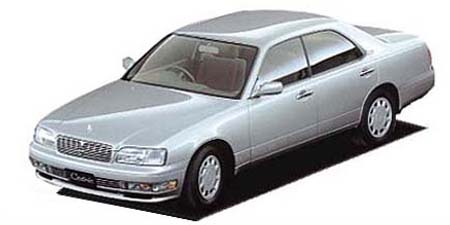

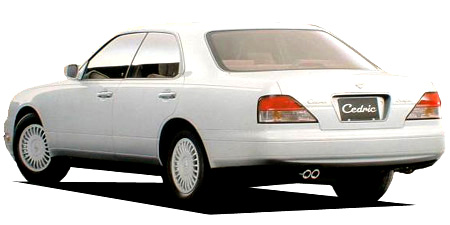

NISSAN CEDRIC BROUGHAM

NISSAN CEDRIC

UY33 · BROUGHAM

Description

Modification: BROUGHAM
Chassis ID: UY33
Dates releasing: 1995.6~
Base price, ¥: KD-UY33
Body size: 4860x1765x1425
Interior (LxWxH): 2000x1480x1160
Wheelbase: 2800
Track f/r: 1500mm/1495mm
Full weight, kg: 1560
Body type: Hardtop
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ◯
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ✓
Power rear seat: ◯
Wood panel: ✓
Sunroof: ×
Alloy wheels: 15 inches standard
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: RD28
Type: inline 6 cylinder OHC (Diesel)
Bore x stroke, mm: 85.0x83.0
Engine size, cc: 2825
Compression ratio: 22.4
Fuel injection: 噴射型
Max power, hp/rpm: 100ps(74kW)/4800rpm
Max torque, Nm/rpm: 18.2kg m(178.5N m)/2400rpm
Supercharger: ×
Fuel tank, liters: 80 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Independent suspension Strut type
Rear suspension: Independent suspension Multi-link
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 205/65R15 94H
Rear wheel: 205/65R15 94H
Min turn diameter, m: 5.5

Gearbox

Number of stages: 4AT
Drive: FR
LSD: ◯

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ◯ / ◯
Wiper: ×

Navigation & sound

Navigation: ◯
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.785	1.545	1.000	0.694	—	—	—	—	2.272

Available colors

black / Other blackwhitegreen / Other greenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearl / Other PearlGold / Other Gold
