JDM Vehicle Catalog

Vehicle Specs

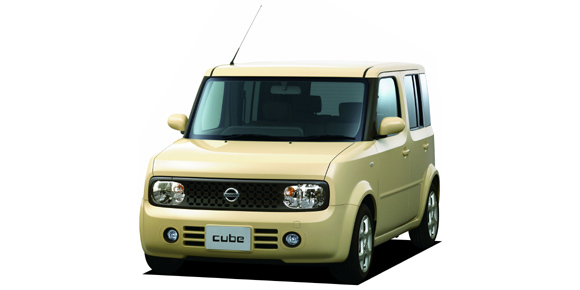

NISSAN CUBE 14S FOUR KAGAYAKI EDITION PLUS NAVI HDD

NISSAN CUBE

BNZ11 · 14S FOUR KAGAYAKI EDITION PLUS NAVI HDD

Description

Modification: 14S FOUR KAGAYAKI EDITION PLUS NAVI HDD
Chassis ID: BNZ11
Dates releasing: 2007.6~
Base price, ¥: DBA-BNZ11
Body size: 3730x1670x1650
Interior (LxWxH): 1870x1340x1265
Wheelbase: 2430
Track f/r: 1470mm/1465mm
Full weight, kg: 1150
Body type: MV 1Box
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ◯

Engine

Model: CR14DE
Type: water cooling inline 4 cylinder DOHC
Bore x stroke, mm: 73.0x82.8
Engine size, cc: 1386
Compression ratio: 9.8
Fuel injection: ニッサンEGI(ECCS)電子制御燃料噴射装置
Max power, hp/rpm: 97ps(71kW)/5600rpm
Max torque, Nm/rpm: 13.9kg m(136N m)/3200rpm
Supercharger: ×
Fuel tank, liters: 41 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 6.2

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Independent suspension Strut type
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 175/65R14 82S
Rear wheel: 175/65R14 82S
Min turn diameter, m: 4.4

Gearbox

Number of stages: 4AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.861	1.562	1.000	0.697	—	—	—	—	2.310

Available colors

black / Super Blackwhite / Other whitegreenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-green / Other Yellow-greenBlack (P)MagentaSilver / Diamond silver (M)Red / Other RedBlue / Other BlueDark cyanPearl / White Pearl (3P)Gold
