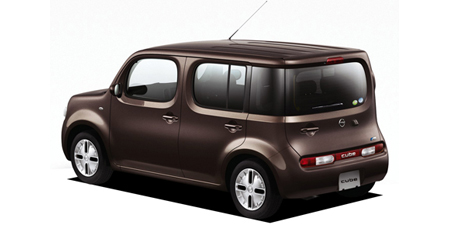

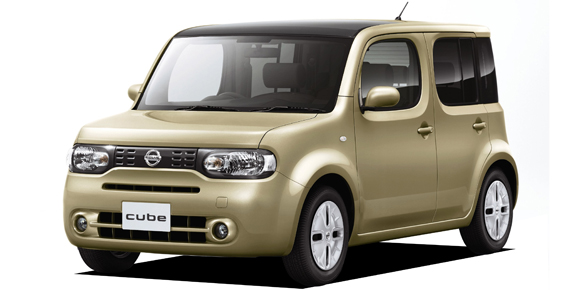

NISSAN CUBE 15S

NISSAN CUBE

Z12 · 15S

Description

Modification: 15S
Chassis ID: Z12
Dates releasing: 2009.4~
Base price, ¥: DBA-Z12
Body size: 3890x1695x1650
Interior (LxWxH): 1950x1395x1275
Wheelbase: 2530
Track f/r: 1480mm/1485mm
Full weight, kg: 1170
Body type: MV 1Box
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ×
Additional equipment: アダプティブシフトコントロール(ASC)

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×

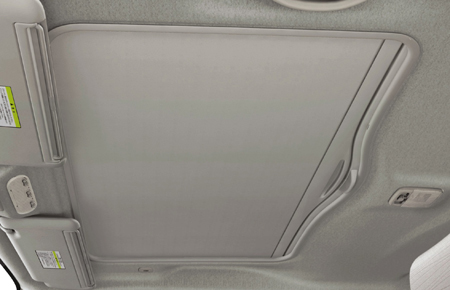

Sunroof: ×
Alloy wheels: Option settings NO

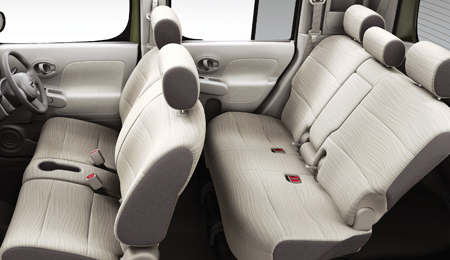

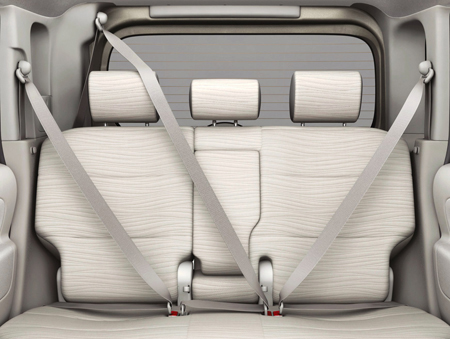

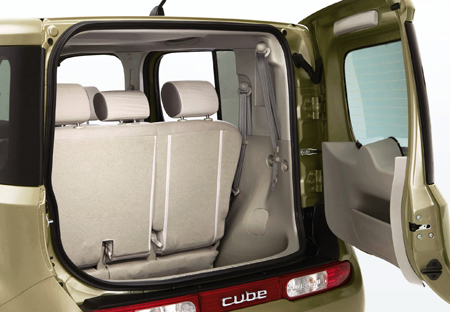

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ×

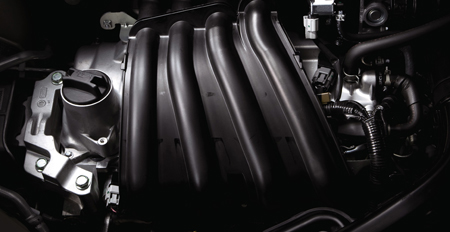

Engine

Model: HR15DE
Type: water cooling inline 4 cylinder DOHC
Bore x stroke, mm: 78.0x78.4
Engine size, cc: 1498
Compression ratio: 10.5
Fuel injection: ニッサンEGI(ECCS)電子制御燃料噴射装置
Max power, hp/rpm: 109ps(80kW)/6000rpm
Max torque, Nm/rpm: 15.1kg m(148N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 45 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 5

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Independent suspension Strut type
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Drum

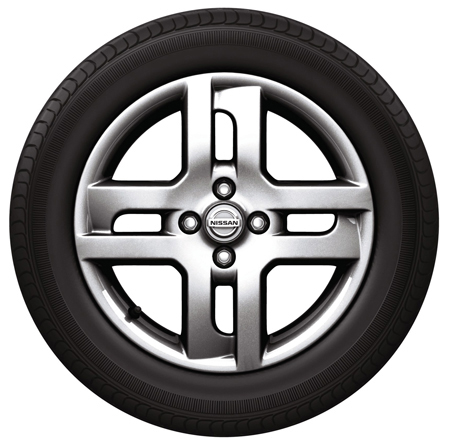

Front wheel: 175/65R15 84S
Rear wheel: 175/65R15 84S
Min turn diameter, m: 4.6

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.561~0.427	—	—	—	—	—	—	—	—	2.619

Available colors

black / Super BlackwhitegreenMaroon (brown) / Other Maroon (brown)Olive / Other OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Diamond silver (M)Red / Other RedBlue / Other BlueDark cyanPearl / White Pearl (3P)Gold / Other Gold
