JDM Vehicle Catalog

Vehicle Specs

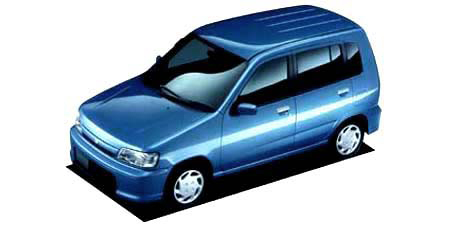

NISSAN CUBE S LIMITED

NISSAN CUBE

AZ10 · S LIMITED

Description

Modification: S LIMITED
Chassis ID: AZ10
Dates releasing: 2000.5~
Base price, ¥: GH-AZ10
Body size: 3750x1610x1625
Interior (LxWxH): 1865x1305x1255
Wheelbase: 2360
Track f/r: 1375mm/1335mm
Full weight, kg: ----
Body type: MV 1Box
Doors / seats: 5 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ◯
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ◯
Sunroof: ◯
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: CGA3DE
Type: water cooling inline 4 cylinder DOHC
Bore x stroke, mm: 72.0x82.8
Engine size, cc: 1348
Compression ratio: 9.5
Fuel injection: ニッサンEGI(ECCS)
Max power, hp/rpm: 85ps(63kW)/6000rpm
Max torque, Nm/rpm: 12.2kg m(120N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 42 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Independent suspension Strut type
Rear suspension: 5リンクコイル
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 175/60R14 79H
Rear wheel: 175/60R14 79H
Min turn diameter, m: 5.0

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ◯
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.861	1.562	1.000	0.697	—	—	—	—	2.310

Available colors

black / Super Blackwhite / Crystal WhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearl / Other PearlGold
