NISSAN DATSUN PICK UP KING CAB AX

NISSAN DATSUN PICK UP

LRMD22 · KING CAB AX

Description

Modification: KING CAB AX
Chassis ID: LRMD22
Dates releasing: 1999.6~
Base price, ¥: KG-LRMD22
Body size: 4985x1820x1695
Interior (LxWxH): ----x----x----
Wheelbase: 2950
Track f/r: 1525mm/1505mm
Full weight, kg: 1790
Body type: Pickup
Doors / seats: 4 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ◯
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ◯
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ◯
Sunroof: ◯
Alloy wheels: Option settings YES
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ◯

Engine

Model: QD32
Type: water cooling inline 4 cylinder OHV (Diesel)
Bore x stroke, mm: 99.2x102.0
Engine size, cc: 3153
Compression ratio: 22.0
Fuel injection: 燃料噴射装置
Max power, hp/rpm: 110ps(81kW)/3600rpm
Max torque, Nm/rpm: 22.5kg m(220.6N m)/2000rpm
Supercharger: ×
Fuel tank, liters: 75 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Other
Front suspension: Independent suspension Double wishbone type トーションスプリング
Rear suspension: リジッ DOOR クスル車軸半楕円リーフス&#
Front brake: Ventilated disk
Rear brake: Drum

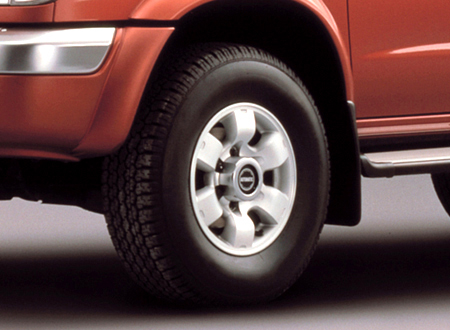

Front wheel: 255/70R15 112LLT
Rear wheel: 255/70R15 112LLT
Min turn diameter, m: 6.3

Gearbox

Number of stages: 4AT
Drive: Part-time 4WD
LSD: ◯

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ◯
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.027	1.619	1.000	0.694	—	—	—	—	2.272

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearl / Other PearlGold
