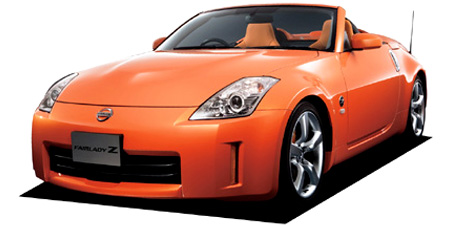

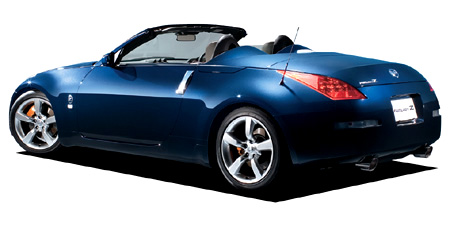

NISSAN FAIRLADY Z ROADSTER VERSION ST

NISSAN FAIRLADY Z

HZ33 · ROADSTER VERSION ST

Description

Modification: ROADSTER VERSION ST
Chassis ID: HZ33
Dates releasing: 2007.1~
Base price, ¥: CBA-HZ33
Body size: 4315x1815x1325
Interior (LxWxH): 1000x1480x1130
Wheelbase: 2650
Track f/r: 1535mm/1540mm
Full weight, kg: 1600
Body type: Open
Doors / seats: 2 door / 2

Safe equipment

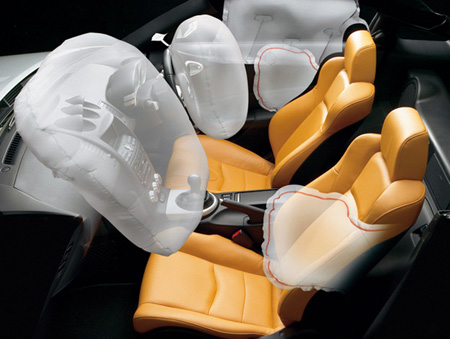

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VDC(ビークルダイナミクスコントロール)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: ×

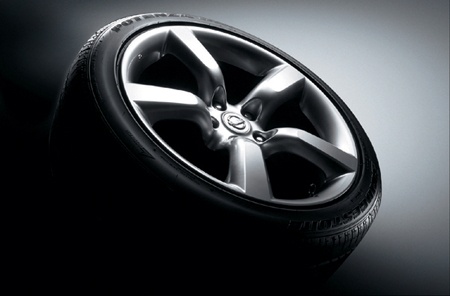

Alloy wheels: 18 inches standard
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: VQ35HR
Type: V-type 6 cylinder DOHC
Bore x stroke, mm: 95.5x81.4
Engine size, cc: 3498
Compression ratio: 10.6
Fuel injection: ニッサンEGI(ECCS)
Max power, hp/rpm: 313ps(230kW)/6800rpm
Max torque, Nm/rpm: 36.5kg m(358N m)/4800rpm
Supercharger: ×
Fuel tank, liters: 80 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 10.9

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Multi-link
Rear suspension: Multi-link
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 225/45R18 91W
Rear wheel: 245/45R18 96W
Min turn diameter, m: 5.4

Gearbox

Number of stages: 6MT
Drive: FR
LSD: ✓

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ◯
Navigation device: HDD

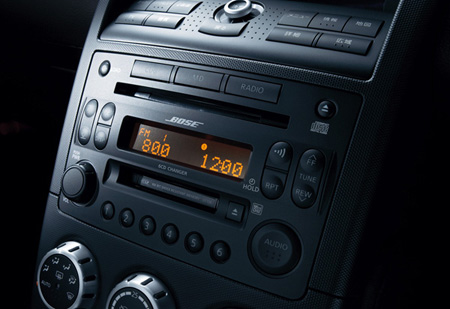

Audio: AM/FM radio with MD player
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.794	2.324	1.624	1.271	1.000	0.794	—	—	3.446

Available colors

black / Diamond Black (P)whitegreenMaroon (brown)OliveNavy blue / Dark Blue (P)PurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearl / White Pearl (3P)Gold / Other Gold
