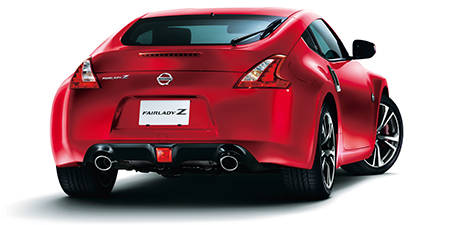

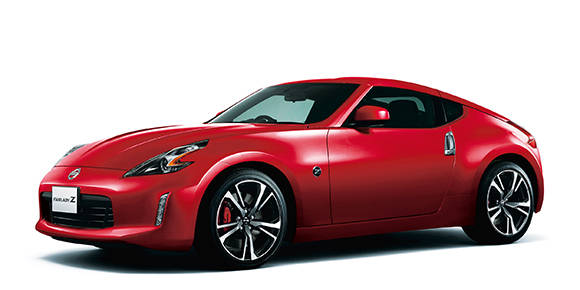

NISSAN FAIRLADY Z VERSION ST

NISSAN FAIRLADY Z

Z34 · VERSION ST

Description

Modification: VERSION ST
Chassis ID: Z34
Dates releasing: 2017.7~
Base price, ¥: CBA-Z34
Body size: 4260x1845x1315
Interior (LxWxH): 990x1495x1090
Wheelbase: 2550
Track f/r: 1540mm/1565mm
Full weight, kg: 1540
Body type: Coupe
Doors / seats: 3 door / 2

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VDC(ビークルダイナミクスコントロール〔TCS機能含む〕)

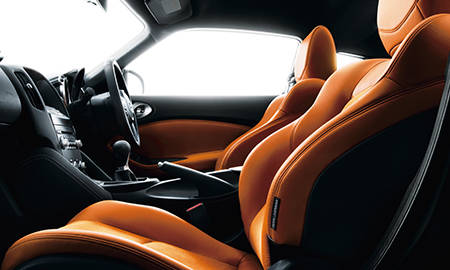

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: ×

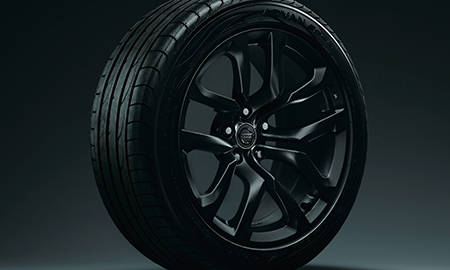

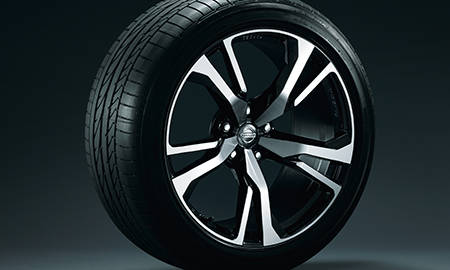

Alloy wheels: 19 inches standard
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ×

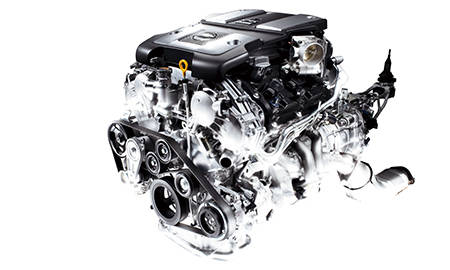

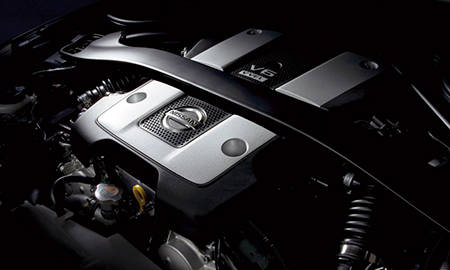

Engine

Model: VQ37VHR
Type: V-type 6 cylinder DOHC
Bore x stroke, mm: 95.5x86.0
Engine size, cc: 3696
Compression ratio: 11.0
Fuel injection: ニッサンEGI(ECCS)電子制御燃料噴射装置
Max power, hp/rpm: 336ps(247kW)/7000rpm
Max torque, Nm/rpm: 37.2kg m(365N m)/5200rpm
Supercharger: ×
Fuel tank, liters: 72 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 11.1

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Independent suspension Double wishbone
Rear suspension: Independent suspension Multi-link
Front brake: Ventilated disk
Rear brake: Ventilated disk

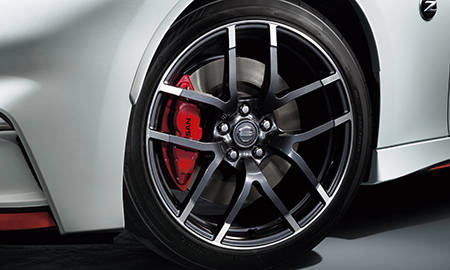

Front wheel: 245/40R19 94W
Rear wheel: 275/35R19 96W
Min turn diameter, m: 5.2

Gearbox

Number of stages: 6MT
Drive: FR
LSD: ✓

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ✓
Extra front lights: ✓
Spoilers (f / r): × / ×
Wiper: ✓

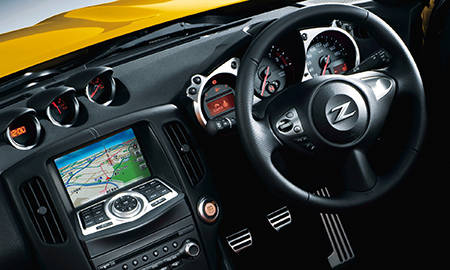

Navigation & sound

Navigation: ✓
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.794	2.324	1.624	1.271	1.000	0.794	—	—	3.446

Available colors

black / Diamond Black (P)whitegreenMaroon (brown)OliveNavy bluePurpleAshes / Dark metal gray (M)Yellow / Other YellowYellow-greenBlack (P)MagentaSilver / Sonic Chrome Brilliant Silver (M)Red / Other RedBlue / Other BlueDark cyanPearl / Brilliant White Pearl (3P)Gold
