JDM Vehicle Catalog

Vehicle Specs

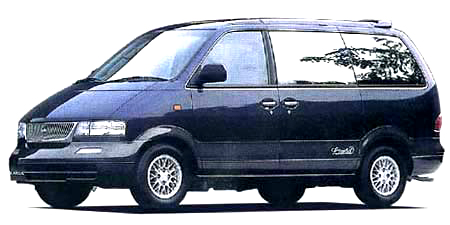

NISSAN LARGO GRANDAGE

NISSAN LARGO

NW30 · GRANDAGE

Description

Modification: GRANDAGE
Chassis ID: NW30
Dates releasing: 1996.10~
Base price, ¥: E-NW30
Body size: 4585x1745x1900
Interior (LxWxH): 2840x1605x1280
Wheelbase: 2735
Track f/r: 1485mm/1480mm
Full weight, kg: 1680
Body type: MV 1Box
Doors / seats: 4 door / 7

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ×
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ◯
Sunroof: 特殊形状
Alloy wheels: 14 inches standard
Folding seat: 一体
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: KA24DE
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 89.0x96.0
Engine size, cc: 2388
Compression ratio: 9.5
Fuel injection: ニッサンEGI(ECCS)電子制御燃料噴射装置
Max power, hp/rpm: 145ps(107kW)/5200rpm
Max torque, Nm/rpm: 22.0kg m(215.7N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 12.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Independent suspension Strut type
Rear suspension: Independent suspension Multi-link
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 195/70R14 91S
Rear wheel: 215/65R14 94S
Min turn diameter, m: 5.5

Gearbox

Number of stages: 4AT
Drive: Full-time 4WD
LSD: ◯

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ◯ / ◯
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.785	1.545	1.000	0.694	—	—	—	—	2.272

Available colors

black / Other blackwhitegreen / Other greenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurple / Other PurpleAshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilverRedBlue / Other BlueDark cyanPearlGold / Other Gold
