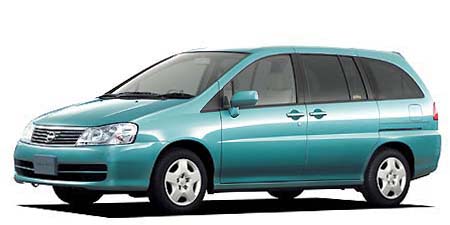

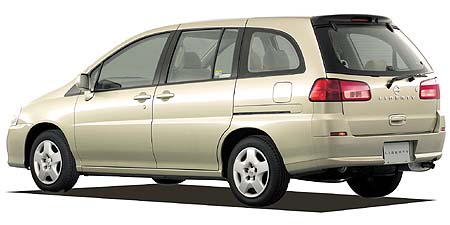

NISSAN LIBERTY S

NISSAN LIBERTY

RM12 · S

Description

Modification: S
Chassis ID: RM12
Dates releasing: 2001.5~
Base price, ¥: TA-RM12
Body size: 4575x1695x1630
Interior (LxWxH): 2620x1470x1200
Wheelbase: 2690
Track f/r: 1470mm/1470mm
Full weight, kg: 1480
Body type: MV 1Box
Doors / seats: 5 door / 7

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ◯

Engine

Model: QR20DE NEO
Type: water cooling inline 4 cylinder DOHC
Bore x stroke, mm: 89.0x80.3
Engine size, cc: 1998
Compression ratio: 9.9
Fuel injection: ニッサンEGI(ECCS)電子制御燃料噴射装置
Max power, hp/rpm: 147ps(108kW)/6000rpm
Max torque, Nm/rpm: 20.2kg m(198N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 7.7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Independent suspension Strut type
Rear suspension: マルチリンク(ウィッシュボーン)
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 185/65R15 88S
Rear wheel: 185/65R15 88S
Min turn diameter, m: 5.3

Gearbox

Number of stages: CVT
Drive: FF
LSD: ◯

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: DVD
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.326~0.434	—	—	—	—	—	—	—	—	1.586

Available colors

blackwhitegreenMaroon (brown)OliveNavy blue / Dark Blue (P)PurpleAshesYellowYellow-green / Other Yellow-greenBlack (P)MagentaSilver / Diamond silver (M)RedBlueDark cyan / Other Dark cyanPearl / White Pearl (3P)Gold
