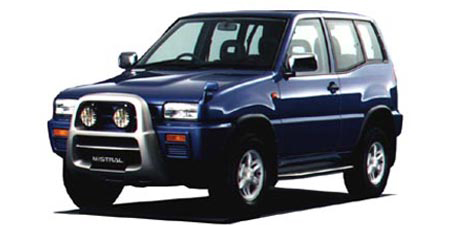

NISSAN MISTRAL SHORT TYPE R AERO

NISSAN MISTRAL

KR20 · SHORT TYPE R AERO

Description

Modification: SHORT TYPE R AERO
Chassis ID: KR20
Dates releasing: 1996.2~
Base price, ¥: KD-KR20
Body size: 4200x1745x1805
Interior (LxWxH): 1770x1390x1175
Wheelbase: 2450
Track f/r: 1455mm/1430mm
Full weight, kg: ----
Body type: SUV
Doors / seats: 3 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ◯
Sunroof: シングル
Alloy wheels: 15 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: TD27B( TURBO )
Type: inline 4 cylinder OHVturbo (Diesel)
Bore x stroke, mm: 96.0x92.0
Engine size, cc: 2663
Compression ratio: 22.3
Fuel injection: ボッシュ type 分配型噴射ポンプ
Max power, hp/rpm: 100ps(74kW)/4000rpm
Max torque, Nm/rpm: 24.8kg m(243.2N m)/2200rpm
Supercharger: Turbo
Fuel tank, liters: 72 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Other
Front suspension: Independent suspension Double wishbone type トーションバースプリ&#12
Rear suspension: 5リンク Coil spring
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: P235/75R15
Rear wheel: P235/75R15
Min turn diameter, m: 5.1

Gearbox

Number of stages: 4AT
Drive: Part-time 4WD
LSD: ✓

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearlGold
