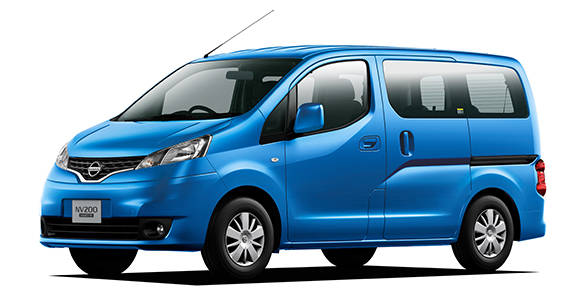

NISSAN NV200VANETTE WAGON 16X-2R

NISSAN NV200VANETTE WAGON

M20 · 16X-2R

Description

Modification: 16X-2R
Chassis ID: M20
Dates releasing: 2020.1~
Base price, ¥: 3BA-M20
Body size: 4400x1695x1850
Interior (LxWxH): ----x----x----
Wheelbase: 2725
Track f/r: 1490mm/1510mm
Full weight, kg: 1310
Body type: MV 1Box
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ×
Additional equipment: VDC(ビークルダイナミクスコントロール)

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: HR16DE
Type: water cooling inline 4 cylinder DOHC
Bore x stroke, mm: 78.0x83.6
Engine size, cc: 1597
Compression ratio: 9.8
Fuel injection: ニッサンEGI(ECCS)電子制御燃料噴射装置
Max power, hp/rpm: 109ps(80kW)/6000rpm
Max torque, Nm/rpm: 15.5kg m(152N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 55 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type
Rear suspension: リーフリジッド
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 165/80R14 91/90NLT
Rear wheel: 165/80R14 97/95NLT
Min turn diameter, m: 5.2

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.861	1.562	1.000	0.697	—	—	—	—	2.310

Available colors

black / Super BlackwhitegreenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Sonic Chrome Brilliant Silver (M)RedBlue / Other BlueDark cyanPearl / White Pearl (3P)Gold
