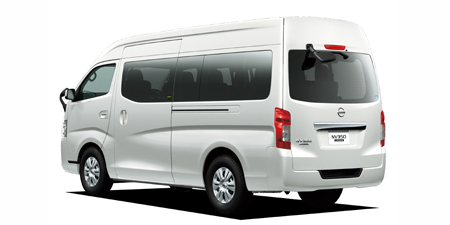

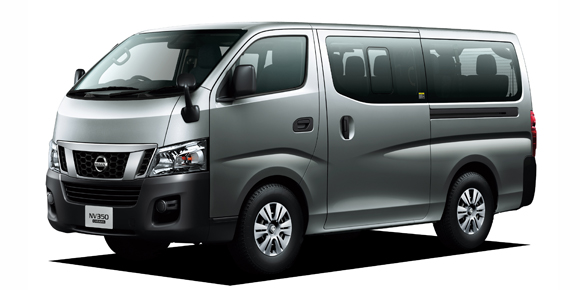

NISSAN NV350CARAVAN WAGON DX

NISSAN NV350CARAVAN WAGON

KS2E26 · DX

Description

Modification: DX
Chassis ID: KS2E26
Dates releasing: 2012.6~
Base price, ¥: CBA-KS2E26
Body size: 4695x1695x1990
Interior (LxWxH): ----x----x----
Wheelbase: 2555
Track f/r: 1475mm/1475mm
Full weight, kg: 1860
Body type: MV 1Box
Doors / seats: 4 door / 10

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ×
Anti-theft device: ◯
Additional equipment: ×

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ◯

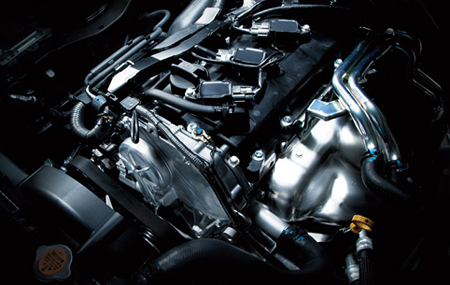

Engine

Model: QR25DE
Type: water cooling inline 4 cylinder DOHC
Bore x stroke, mm: 89.0x100.0
Engine size, cc: 2488
Compression ratio: 9.5
Fuel injection: ニッサンEGI(ECCS)
Max power, hp/rpm: 147ps(108kW)/5600rpm
Max torque, Nm/rpm: 21.7kg m(213N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 65 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 11

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone
Rear suspension: リジッドリーフ
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 195/80R15 96S
Rear wheel: 195/80R15 96S
Min turn diameter, m: 5.2

Gearbox

Number of stages: 5AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×

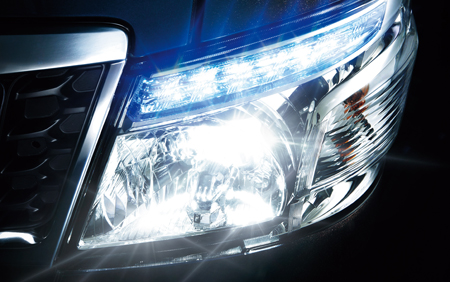

Xenon: ◯
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.841	2.352	1.529	1.000	0.839	—	—	—	2.764

Available colors

black / Super BlackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold
