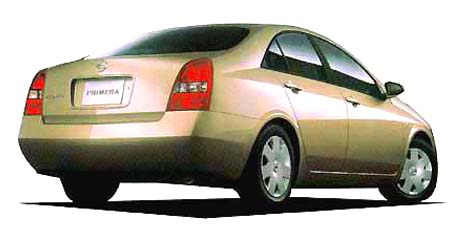

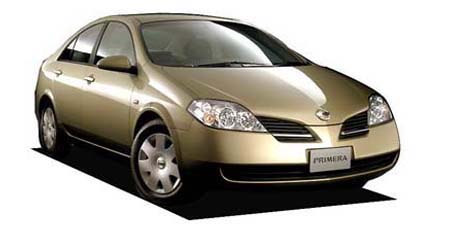

NISSAN PRIMERA 20C

NISSAN PRIMERA

TP12 · 20C

Description

Modification: 20C
Chassis ID: TP12
Dates releasing: 2001.1~
Base price, ¥: TA-TP12
Body size: 4565x1760x1480
Interior (LxWxH): 2145x1440x1190
Wheelbase: 2680
Track f/r: 1530mm/1535mm
Full weight, kg: 1300
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ◯
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ◯
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ◯
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ◯

Engine

Model: QR20DE
Type: water cooling inline 4 cylinder DOHC
Bore x stroke, mm: 89.0x80.3
Engine size, cc: 1998
Compression ratio: 9.9
Fuel injection: ニッサンEGI(ECCS)
Max power, hp/rpm: 150ps(110kW)/6000rpm
Max torque, Nm/rpm: 20.4kg m(200N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 7.7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Multi-link
Rear suspension: マルチリンクビーム
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 195/65R15
Rear wheel: 195/65R15
Min turn diameter, m: 5.3

Gearbox

Number of stages: CVT
Drive: FF
LSD: ◯

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ◯
Extra front lights: ×
Spoilers (f / r): ◯ / ◯
Wiper: ×

Navigation & sound

Navigation: ◯
Navigation device: DVD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.326~0.434	—	—	—	—	—	—	—	—	1.586

Available colors

black / Super Black / Other blackwhitegreenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurpleAshesYellowYellow-green / Other Yellow-greenBlack (P)MagentaSilver / Diamond silver (M) / Other SilverRedBlue / Other BlueDark cyanPearl / Other PearlGold / Other Gold
