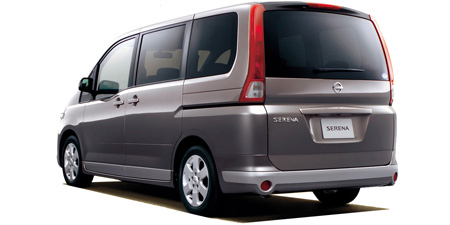

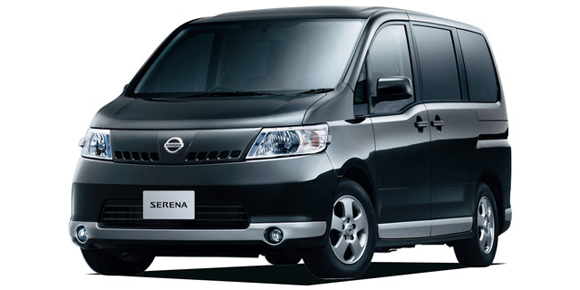

NISSAN SERENA 20RX

NISSAN SERENA

NC25 · 20RX

Description

Modification: 20RX
Chassis ID: NC25
Dates releasing: 2006.12~
Base price, ¥: DBA-NC25
Body size: 4690x1695x1850
Interior (LxWxH): 2825x1470x1355
Wheelbase: 2860
Track f/r: 1485mm/1480mm
Full weight, kg: 1690
Body type: MV 1Box
Doors / seats: 5 door / 8

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ◯
Additional equipment: ×

Comfort

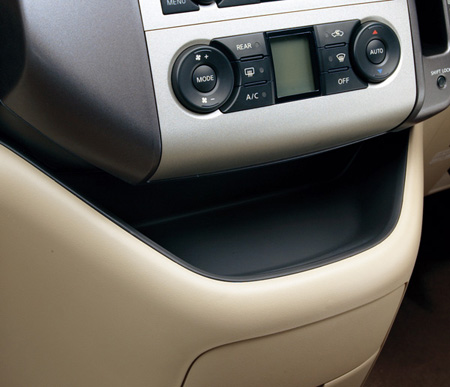

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: 15 inches standard

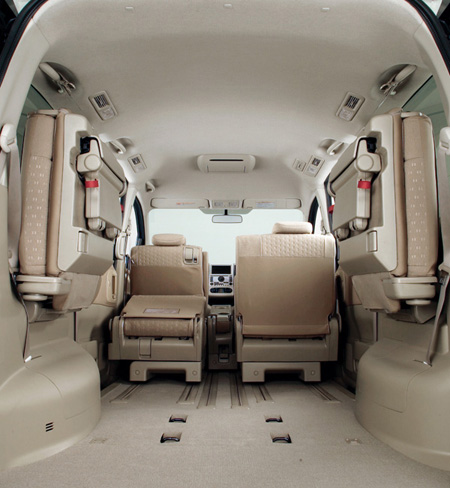

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: MR20DE
Type: inline 4 cylinder DOHC
Bore x stroke, mm: 84.0x90.1
Engine size, cc: 1997
Compression ratio: 10.0
Fuel injection: ニッサンEGI(ECCS)電子制御燃料噴射装置
Max power, hp/rpm: 129ps(95kW)/5200rpm
Max torque, Nm/rpm: 19.1kg m(187N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 8.3

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Independent suspension Strut type
Rear suspension: トレーリングアーム type マルチリンク
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 195/65R15 91S
Rear wheel: 195/65R15 91S
Min turn diameter, m: 5.5

Gearbox

Number of stages: CVT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ◯
Extra front lights: ×
Spoilers (f / r): ◯ / ◯
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.349~0.394	—	—	—	—	—	—	—	—	1.750

Available colors

black / Super BlackwhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Diamond silver (M)RedBlue / Other BlueDark cyanPearl / White Pearl (3P)Gold / Other Gold
