NISSAN SERENA AUTECH

NISSAN SERENA

FC28 · AUTECH

Description

Modification: AUTECH
Chassis ID: FC28
Dates releasing: 2022.12~
Base price, ¥: 5BA-FC28
Body size: 4810x1725x1870
Interior (LxWxH): 3145x1545x1400
Wheelbase: 2870
Track f/r: 1475mm/1485mm
Full weight, kg: 1690
Body type: MV 1Box
Doors / seats: 5 door / 8

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VDC(ビークルダイナミクスコントロール[TCS機能含む])

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×

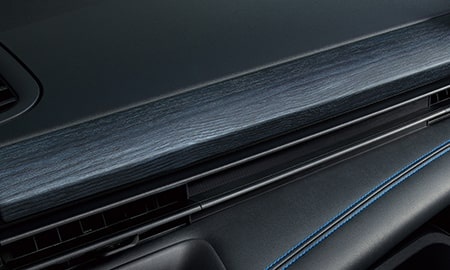

Wood panel: ✓
Sunroof: ×

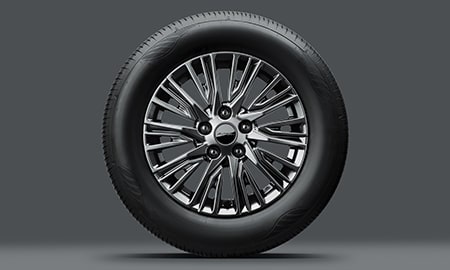

Alloy wheels: 16 inches standard
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: MR20DD
Type: water cooling inline 4 cylinder DOHC
Bore x stroke, mm: 84.0x90.1
Engine size, cc: 1997
Compression ratio: 12.5
Fuel injection: ニッサンDi
Max power, hp/rpm: 150ps(110kW)/6000rpm
Max torque, Nm/rpm: 20.4kg m(200N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 54 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 205/65R16
Rear wheel: 205/65R16
Min turn diameter, m: 5.7

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: HDD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.631~0.378	—	—	—	—	—	—	—	—	1.960

Available colors

black / Diamond Black (P)white / Other whitegreenMaroon (brown)OliveNavy bluePurpleAshes / Dark metal gray (M)YellowYellow-greenBlack (P)MagentaSilverRed / Other RedBlue / Other BlueDark cyanPearlGold
