JDM Vehicle Catalog

Vehicle Specs

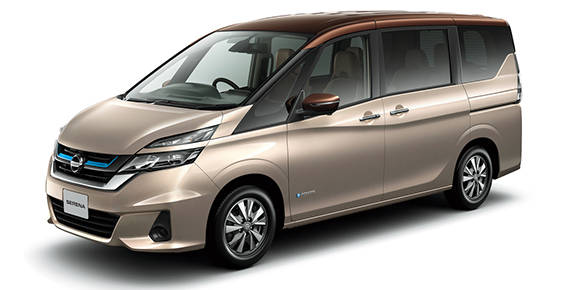

NISSAN SERENA E-POWER XV

NISSAN SERENA

HC27 · E-POWER XV

Description

Modification: E-POWER XV
Chassis ID: HC27
Dates releasing: 2018.3~
Base price, ¥: DAA-HC27
Body size: 4690x1695x1865
Interior (LxWxH): 3240x1545x1400
Wheelbase: 2860
Track f/r: 1485mm/1485mm
Full weight, kg: 1750
Body type: MV 1Box
Doors / seats: 5 door / 7

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VDC(ビークルダイナミクスコントロール[TCS機能含む])

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ◯
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 15 inches standard
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: HR12DE
Type: water cooling inline 3 cylinder DOHC+
Bore x stroke, mm: 78x83.6
Engine size, cc: 1198
Compression ratio: 12.0
Fuel injection: ニッサンEGI(ECCS)
Max power, hp/rpm: 84ps(62kW)/6000rpm
Max torque, Nm/rpm: 10.5kg m(103N m)/3200~5200rpm
Supercharger: ×
Fuel tank, liters: 55 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 3.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: disk

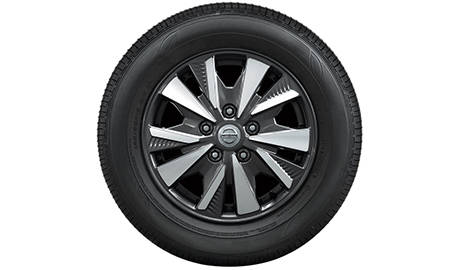

Front wheel: 195/65R15
Rear wheel: 195/65R15
Min turn diameter, m: 5.5

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ◯
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / Other blackwhitegreenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Sonic Chrome Brilliant Silver (M)Red / Other RedBlue / Other BlueDark cyanPearl / Other PearlGold / Other Gold
