JDM Vehicle Catalog

Vehicle Specs

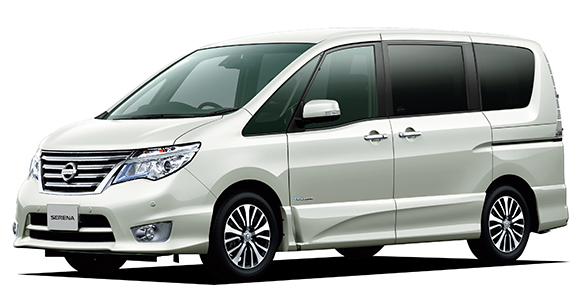

NISSAN SERENA HIGHWAY STAR V SELECTION +SAFETY S-HYBRID

NISSAN SERENA

HFC26 · HIGHWAY STAR V SELECTION +SAFETY S-HYBRID

Description

Modification: HIGHWAY STAR V SELECTION +SAFETY S-HYBRID
Chassis ID: HFC26
Dates releasing: 2014.10~
Base price, ¥: DAA-HFC26
Body size: 4770x1735x1865
Interior (LxWxH): 3060x1480x1380
Wheelbase: 2860
Track f/r: 1480mm/1485mm
Full weight, kg: 1680
Body type: MV 1Box
Doors / seats: 5 door / 8

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VDC(ビークルダイナミクスコントロール[TCS機能含む])

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×

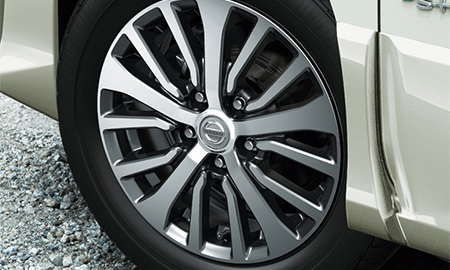

Alloy wheels: 16 inches standard
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: MR20DD
Type: inline 4 cylinder DOHC+
Bore x stroke, mm: 84.0x90.1
Engine size, cc: 1997
Compression ratio: 11.2
Fuel injection: ニッサンDi
Max power, hp/rpm: 147ps(108kW)/5600rpm
Max torque, Nm/rpm: 21.4kg m(210N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 6.5

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Independent suspension Strut type
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 195/60R16 89H
Rear wheel: 195/60R16 89H
Min turn diameter, m: 5.7

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×

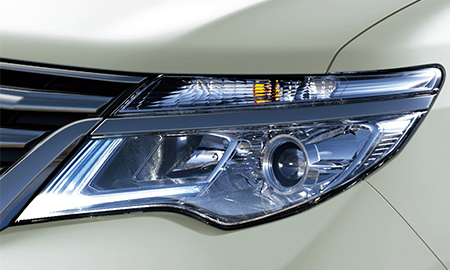

Xenon: ×
Extra front lights: ✓
Spoilers (f / r): ✓ / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.631~0.378	—	—	—	—	—	—	—	—	1.960

Available colors

black / Diamond Black (P)whitegreenMaroon (brown) / Other Maroon (brown)Olive / Other OliveNavy bluePurpleAshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Sonic Chrome Brilliant Silver (M)RedBlueDark cyanPearl / Brilliant White Pearl (3P)Gold / Other Gold
