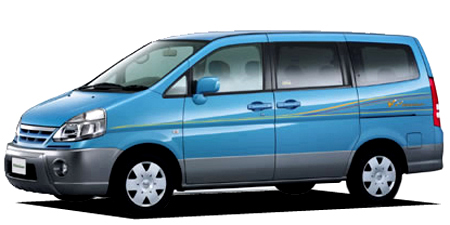

NISSAN SERENA KITAKITSUNE

NISSAN SERENA

TNC24 · KITAKITSUNE

Description

Modification: KITAKITSUNE
Chassis ID: TNC24
Dates releasing: 2004.4~
Base price, ¥: CBA-TNC24
Body size: 4650x1695x1825
Interior (LxWxH): 2695x1470x1300
Wheelbase: 2695
Track f/r: 1480mm/1465mm
Full weight, kg: 1610
Body type: MV 1Box
Doors / seats: 5 door / 8

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: Option settings NO
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: QR20DE(NEO)
Type: inline 4 cylinder DOHC
Bore x stroke, mm: 89.0x80.3
Engine size, cc: 1998
Compression ratio: 9.9
Fuel injection: ニッサンEGI(ECCS)
Max power, hp/rpm: 147ps(108kW)/6000rpm
Max torque, Nm/rpm: 20.2kg m(198N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type
Rear suspension: トレーリングアーム type マルチリンク
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 195/65R15 91S
Rear wheel: 195/65R15 91S
Min turn diameter, m: 5.5

Gearbox

Number of stages: 4AT
Drive: Full-time 4WD
LSD: ◯

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ◯
Extra front lights: ×
Spoilers (f / r): × / ◯
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with MD player
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.785	1.545	1.000	0.694	—	—	—	—	2.272

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Diamond silver (M)RedBlueDark cyanPearl / White Pearl (3P)Gold
