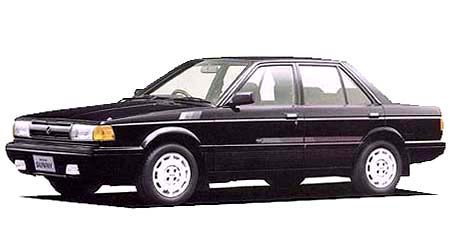

NISSAN SUNNY EX-D

NISSAN SUNNY

SB12 · EX-D

Description

Modification: EX-D
Chassis ID: SB12
Dates releasing: 1989.4~
Base price, ¥: Q-SB12
Body size: 4175x1640x1385
Interior (LxWxH): 1815x1385x1150
Wheelbase: 2430
Track f/r: 1435mm/1430mm
Full weight, kg: 980
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ◯
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: ×
Power window: ×
Central switch: ×
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: CD17
Type: water cooling inline 4 cylinder OHC (Diesel)
Bore x stroke, mm: 80.0x83.6
Engine size, cc: 1680
Compression ratio: 21.8
Fuel injection: ボッシュ type 分配型噴射ポンプ
Max power, hp/rpm: 55ps(40kW)/4800rpm
Max torque, Nm/rpm: 10.6kg m(104N m)/2800rpm
Supercharger: ×
Fuel tank, liters: 50 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Independent suspension Strut type
Rear suspension: Independent suspension パラレルリンク Strut type
Front brake: disk
Rear brake: Drum
Front wheel: 155SR13
Rear wheel: 155SR13
Min turn diameter, m: 4.8

Gearbox

Number of stages: 5MT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ◯ / ◯
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.333	1.955	1.286	0.902	0.756	—	—	—	3.417

Available colors

blackwhite / Crystal White / Other whitegreenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-green / Other Yellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold / Other Gold
