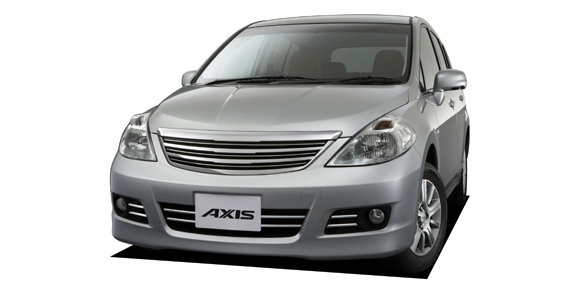

NISSAN TIIDA AXIS PERFORMANCE SPEC

NISSAN TIIDA

NC11 · AXIS PERFORMANCE SPEC

Description

Modification: AXIS PERFORMANCE SPEC
Chassis ID: NC11
Dates releasing: 2008.1~
Base price, ¥: DBA-NC11
Body size: 4270x1695x1540
Interior (LxWxH): 2035x1390x1240
Wheelbase: 2600
Track f/r: 1480mm/1485mm
Full weight, kg: 1250
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ◯
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ✓
Sunroof: ◯
Alloy wheels: 15 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: HR15DE
Type: inline 4 cylinder DOHC
Bore x stroke, mm: 78.0x78.4
Engine size, cc: 1498
Compression ratio: 10.5
Fuel injection: ニッサンEGI(ECCS)電子制御燃料噴射装置
Max power, hp/rpm: 109ps(80kW)/6000rpm
Max torque, Nm/rpm: 15.1kg m(148N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 45 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 6.2

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Independent suspension Strut type
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 185/65R15 88H
Rear wheel: 185/65R15 88H
Min turn diameter, m: 5.2

Gearbox

Number of stages: 4AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ◯
Extra front lights: ◯
Spoilers (f / r): ✓ / ×
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.861	1.562	1.000	0.697	—	—	—	—	2.310

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Sonic Chrome Brilliant Silver (M)RedBlueDark cyanPearl / White Pearl (3P)Gold / Other Gold
