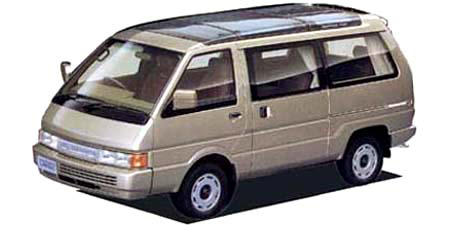

NISSAN VANETTE LARGO COACH SUPER SALOON SV

NISSAN VANETTE LARGO COACH

KUGNC22 · SUPER SALOON SV

Description

Modification: SUPER SALOON SV
Chassis ID: KUGNC22
Dates releasing: 1992.1~
Base price, ¥: Q-KUGNC22
Body size: 4360x1690x1980
Interior (LxWxH): 3140x1510x1265
Wheelbase: 2350
Track f/r: 1430mm/1390mm
Full weight, kg: 1790
Body type: MV 1Box
Doors / seats: 4 door / 8

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: ×
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: 特殊形状
Alloy wheels: Option settings NO
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: LD20T ?
Type: water cooling inline 4 cylinder OHCturbo (Diesel)
Bore x stroke, mm: ----x----
Engine size, cc: 1952
Compression ratio: 21.3
Fuel injection: ボッシュ type 分配型噴射ポンプ
Max power, hp/rpm: 79ps(58kW)/4400rpm
Max torque, Nm/rpm: 17.0kg m(166.7N m)/2400rpm
Supercharger: Turbo
Fuel tank, liters: 60 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone type Independent suspension
Rear suspension: 5リンクコイル
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 195/70R15 92Q
Rear wheel: 195/70R15 92Q
Min turn diameter, m: 4.9

Gearbox

Number of stages: 4AT
Drive: Full-time 4WD
LSD: ◯

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.027	1.619	1.000	0.694	—	—	—	—	2.272

Available colors

blackwhitegreen / Other greenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearlGold / Other Gold
