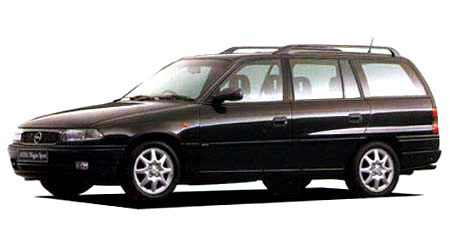

OPEL ASTRA WAGON GL

OPEL ASTRA

XD160W · WAGON GL

Description

Modification: WAGON GL
Chassis ID: XD160W
Dates releasing: 1996.10~
Base price, ¥: E-XD160W
Body size: 4280x1695x1520
Interior (LxWxH): ----x----x----
Wheelbase: 2515
Track f/r: 1430mm/1420mm
Full weight, kg: 1190
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: Option settings NO
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: X16
Type: inline 4 cylinder DOHC
Bore x stroke, mm: 79.0x81.5
Engine size, cc: 1597
Compression ratio: 10.5
Fuel injection: 電子制御燃料噴射 type (シムテック)
Max power, hp/rpm: 100ps(74kW)/6200rpm
Max torque, Nm/rpm: 15.3kg m(150.0N m)/3200rpm
Supercharger: ×
Fuel tank, liters: 50 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 9.4

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut
Rear suspension: トーションビームトレーリングアー
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 175/65HR14
Rear wheel: 175/65HR14
Min turn diameter, m: 5.0

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.807	1.479	1.000	0.735	—	—	—	—	2.769

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearlGold
