JDM Vehicle Catalog

Vehicle Specs

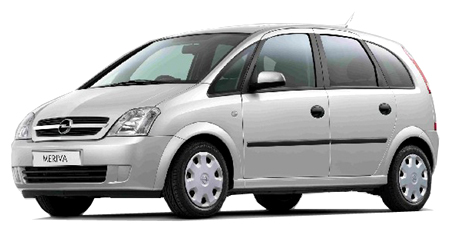

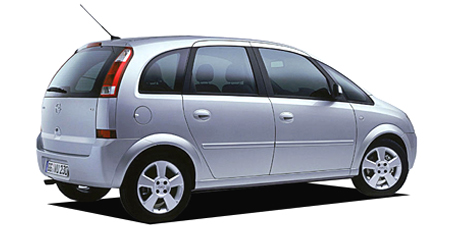

OPEL MERIVA BASEGRADE

OPEL MERIVA

X01Z16 · BASEGRADE

Description

Modification: BASEGRADE
Chassis ID: X01Z16
Dates releasing: 2004.4~
Base price, ¥: TA-X01Z16
Body size: 4040x1695x1625
Interior (LxWxH): 1825x1280x1250
Wheelbase: 2630
Track f/r: 1450mm/1465mm
Full weight, kg: 1320
Body type: MV 1Box
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: FPS(フット PRO テクションシステム) DSA(ダイナミックセーフティ)サスペンショ&#125

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: Option settings NO
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ✓

Engine

Model: Z16
Type: inline 4 cylinder DOHC
Bore x stroke, mm: 79.0x81.5
Engine size, cc: 1597
Compression ratio: 10.5
Fuel injection: 電子制御燃料噴射
Max power, hp/rpm: 100ps(74kW)/6000rpm
Max torque, Nm/rpm: 15.3kg m(150N m)/3600rpm
Supercharger: ×
Fuel tank, liters: 53 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 8.3

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut
Rear suspension: トーションビームトレーリングア&#12540
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 185/60 R15
Rear wheel: 185/60 R15
Min turn diameter, m: 5.1

Gearbox

Number of stages: 5AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: DVD
Audio: AM/FM radio with MD player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.727	1.960	1.323	0.946	0.756	—	—	—	3.307

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-green / Other Yellow-greenBlack (P) / Other Black (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearlGold
