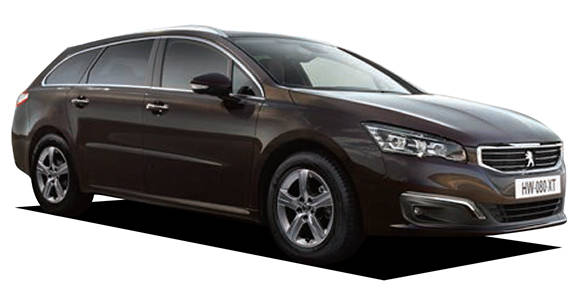

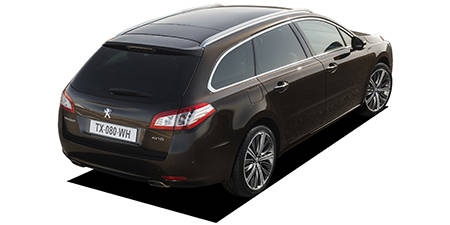

PEUGEOT 508 SW GRIFFE

PEUGEOT 508

W2W5G01 · SW GRIFFE

Description

Modification: SW GRIFFE
Chassis ID: W2W5G01
Dates releasing: 2015.2~
Base price, ¥: ABA-W2W5G01
Body size: 4830x1855x1505
Interior (LxWxH): ----x----x----
Wheelbase: 2815
Track f/r: 1575mm/1545mm
Full weight, kg: 1560
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESC(エレクトロニックスタビリティコントロール)

Comfort

Air conditioner: Dual air conditioning
Power window: ×
Central switch: ×
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: 特殊形状
Alloy wheels: 17 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

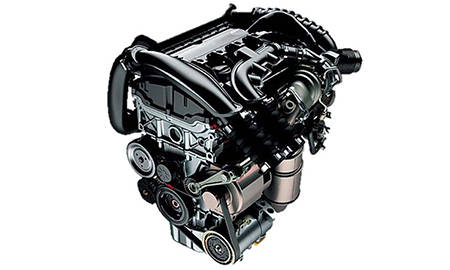

Engine

Model: ----
Type: inline 4 cylinder DOHCturbo
Bore x stroke, mm: 77.0x85.8
Engine size, cc: 1598
Compression ratio: 10.2
Fuel injection: 電子制御コモンレール type 筒内直接噴&#
Max power, hp/rpm: 165ps(121kW)/6000rpm
Max torque, Nm/rpm: 24.5kg m(240N m)/1400~3500rpm
Supercharger: Turbo
Fuel tank, liters: 72 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 7.3

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type (アンチロールバー付)
Rear suspension: Multi-link
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 215/55 R17
Rear wheel: 215/55 R17
Min turn diameter, m: 5.9

Gearbox

Number of stages: 6AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

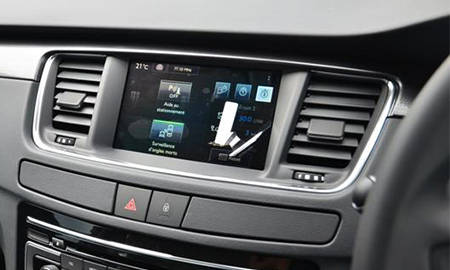

Navigation: ✓
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.043	2.370	1.555	1.159	0.852	0.671	—	—	3.192

Available colors

black / Other blackwhite / Other whitegreenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearl / Other PearlGold
