PORSCHE CAYENNE BASEGRADE

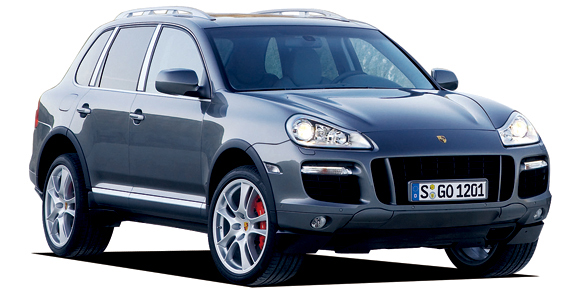

PORSCHE CAYENNE

9PAM5501 · BASEGRADE

Description

Modification: BASEGRADE
Chassis ID: 9PAM5501
Dates releasing: 2008.7~
Base price, ¥: ABA-9PAM5501
Body size: 4810x1930x1700
Interior (LxWxH): ----x----x----
Wheelbase: 2855
Track f/r: 1655mm/1670mm
Full weight, kg: 2250
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: ポルシェスタビリティマネージメントシステム(PSM)

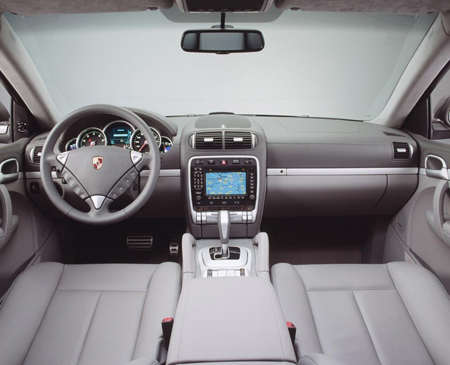

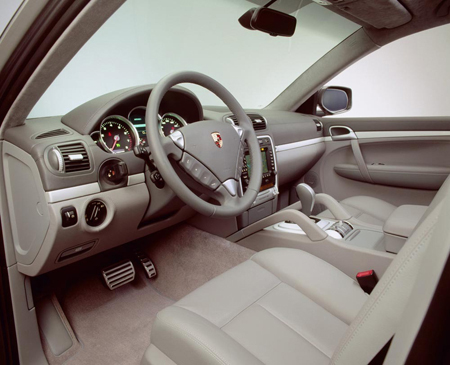

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×

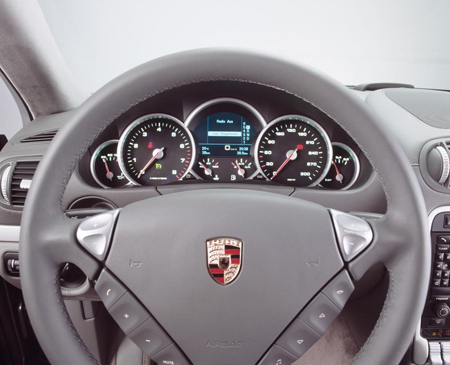

Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: ×

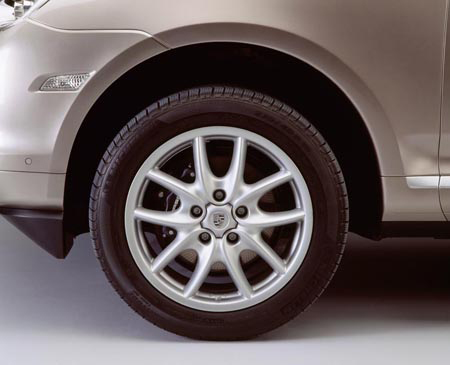

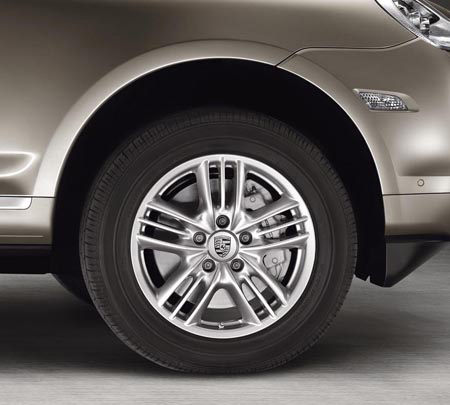

Alloy wheels: 17 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

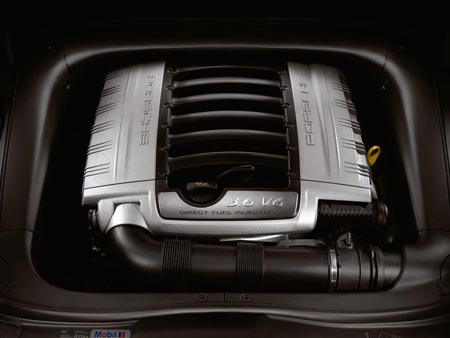

Engine

Model: ----
Type: V-type 6 cylinder 24-valves
Bore x stroke, mm: 89.0x96.4
Engine size, cc: 3598
Compression ratio: ----
Fuel injection: MED9.1
Max power, hp/rpm: 290ps(213kW)/6200rpm
Max torque, Nm/rpm: 39.3kg m(385N m)/3000rpm
Supercharger: ×
Fuel tank, liters: 100 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 13.1

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone
Rear suspension: マルチリンク
Front brake: Ventilated disk
Rear brake: Ventilated disk

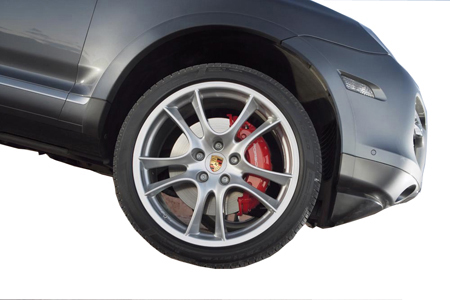

Front wheel: 235/65R17
Rear wheel: 235/65R17
Min turn diameter, m: 5.6

Gearbox

Number of stages: 6AT
Drive: Full-time 4WD
LSD: ----

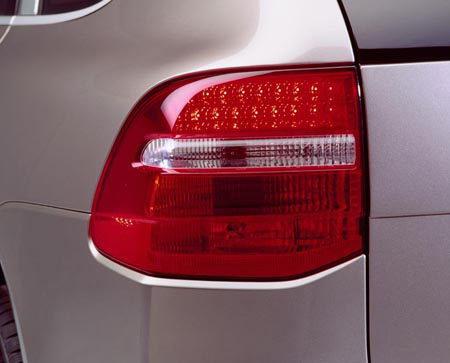

Exterior equipment

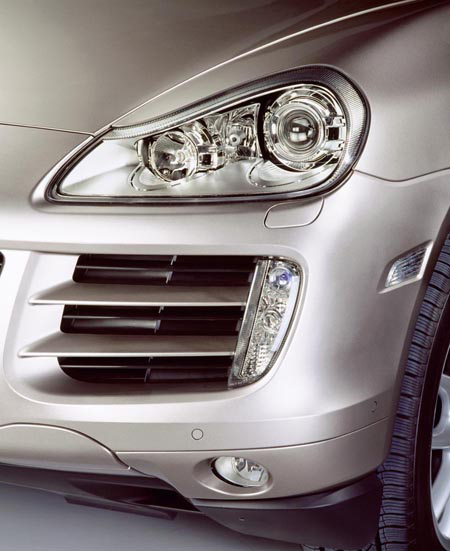

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ×
Extra front lights: ✓
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / Other blackwhite / Other whitegreenMaroon (brown) / Other Maroon (brown)Olive / Other OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearlGold / Other Gold
