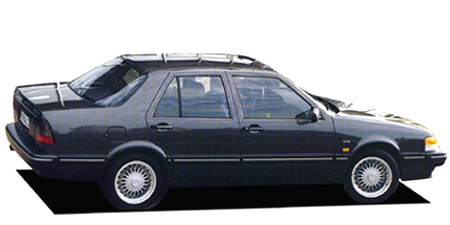

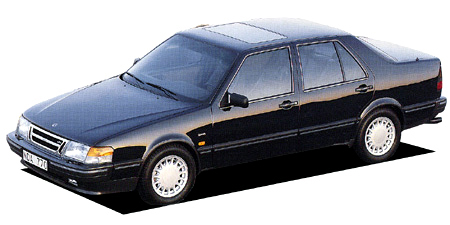

SAAB 9000 SERIES 9000 CD

SAAB 9000 SERIES

CB20S · 9000 CD

Description

Modification: 9000 CD
Chassis ID: CB20S
Dates releasing: 1988.10~
Base price, ¥: E-CB20S
Body size: 4780x1765x1420
Interior (LxWxH): 1855x1305x1085
Wheelbase: 2670
Track f/r: 1520mm/1490mm
Full weight, kg: 1430
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ×
Cruise control: ✓
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: シングル
Alloy wheels: 15 inches standard
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: B20S
Type: water cooling inline 4 cylinder DOHC 16-valves IC-turbo
Bore x stroke, mm: 90.0x78.0
Engine size, cc: 1984
Compression ratio: 9.0
Fuel injection: ボッシュLHジェトロニック(電子制御&#291
Max power, hp/rpm: 160ps(118kW)/5500rpm
Max torque, Nm/rpm: 26.0kg m(255N m)/3000rpm
Supercharger: IC turbo
Fuel tank, liters: 68 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut
Rear suspension: 5リンクリジッド
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 195/65 VR15
Rear wheel: 195/65 VR15
Min turn diameter, m: 5.5

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.578	1.406	1.000	0.742	—	—	—	—	2.882

Available colors

blackwhite / Other whitegreen / Other greenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearlGold / Other Gold
