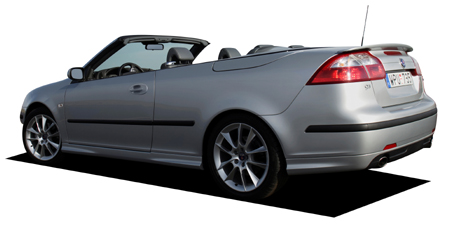

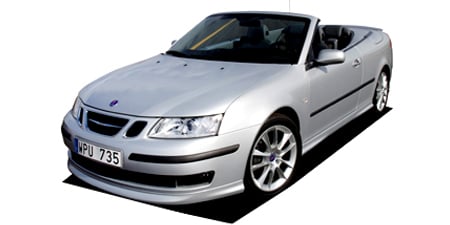

SAAB 93 SERIES 9-3 VECTOR CABRIOLET

SAAB 93 SERIES

FB207 · 9-3 VECTOR CABRIOLET

Description

Modification: 9-3 VECTOR CABRIOLET
Chassis ID: FB207
Dates releasing: 2005.12~
Base price, ¥: GH-FB207
Body size: 4635x1760x1435
Interior (LxWxH): ----x----x----
Wheelbase: 2675
Track f/r: 1525mm/1505mm
Full weight, kg: 1660

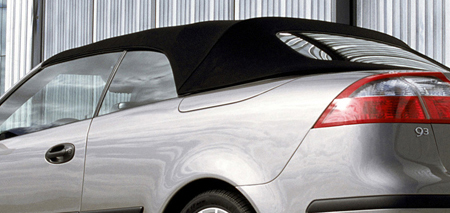

Body type: Open
Doors / seats: 2 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESP(エレクトロニックスタビリティ PRO グラム) CBC(コーナリングブレーキコント

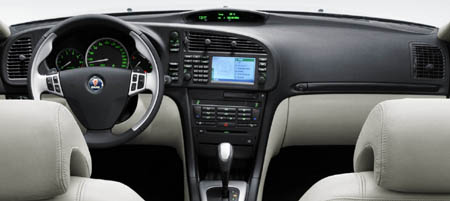

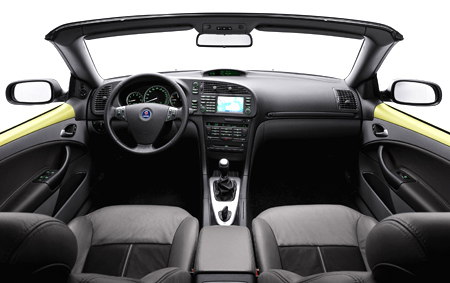

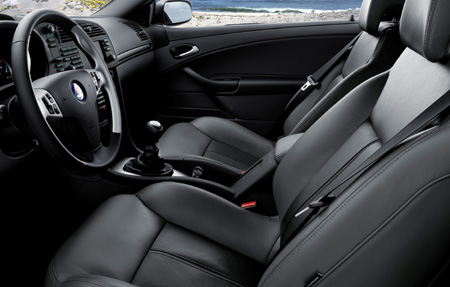

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: ×

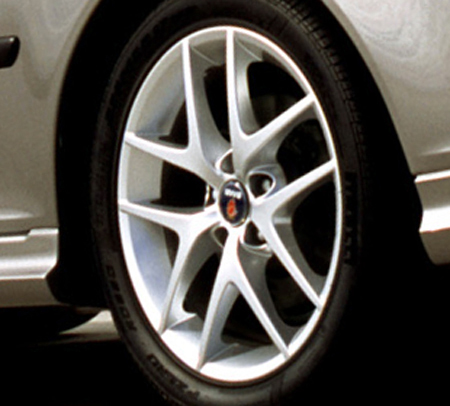

Alloy wheels: 17 inches standard
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: ----
Type: water cooling inline 4 cylinder DOHC 16-valves IC-turbo
Bore x stroke, mm: 86.0x86.0
Engine size, cc: 1998
Compression ratio: ----
Fuel injection: 電子
Max power, hp/rpm: 209ps(154kW)/5300rpm
Max torque, Nm/rpm: 30.6kg m(300N m)/2500rpm
Supercharger: IC turbo
Fuel tank, liters: 58 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 11.1

Steering & suspension

Steering: Power assist equipped rack&pinion

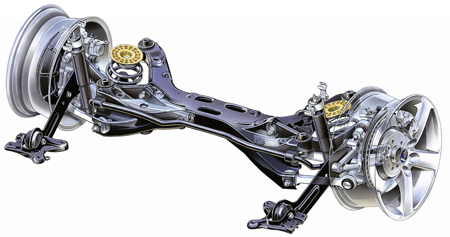

Front suspension: McPherson
Rear suspension: Independent suspension
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 225/45R17
Rear wheel: 225/45R17
Min turn diameter, m: 5.4

Gearbox

Number of stages: 5AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓

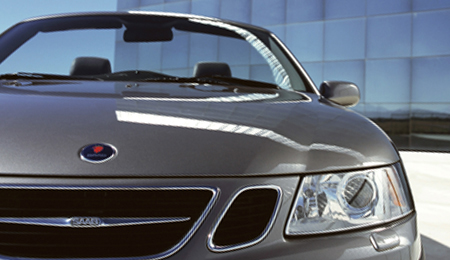

Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.575	2.979	1.947	1.317	1.000	—	—	—	5.024

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellow / Other YellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearlGold / Other Gold
