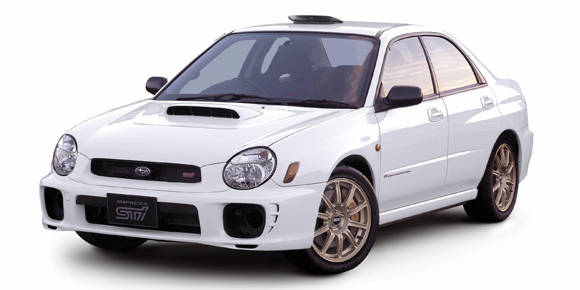

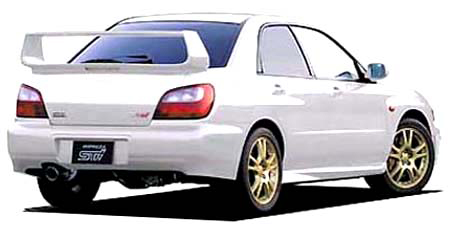

SUBARU IMPREZA WRX Sti TYPE RA SPEC C

SUBARU IMPREZA WRX

GDB · Sti TYPE RA SPEC C

Description

Modification: Sti TYPE RA SPEC C
Chassis ID: GDB
Dates releasing: 2001.12~
Base price, ¥: GH-GDB
Body size: 4405x1730x1425
Interior (LxWxH): 1890x1380x1180
Wheelbase: 2540
Track f/r: 1485mm/1480mm
Full weight, kg: 1290
Body type: Hardtop
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: 採用
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ×
Central switch: ×
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: EJ20
Type: horizontally-opposed 4 cylinder DOHC 16-valves IC-turbo
Bore x stroke, mm: 92.0x75.0
Engine size, cc: 1994
Compression ratio: 8.0
Fuel injection: EGI(電子制御燃料噴射装置:マルチポイ&#1
Max power, hp/rpm: 280ps(206kW)/6400rpm
Max torque, Nm/rpm: 39.2kg m(384N m)/4400rpm
Supercharger: IC turbo
Fuel tank, liters: 50 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 9.6

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: 倒立 type 4輪 Strut スポーツサスペンション
Rear suspension: 倒立 type 4輪 Strut スポーツサスペンション
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 205/55R16
Rear wheel: 205/55R16
Min turn diameter, m: 5.7

Gearbox

Number of stages: 6MT
Drive: Full-time 4WD
LSD: ✓

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.636	2.375	1.761	1.346	1.062	0.842	—	—	3.545

Available colors

blackwhite / Pure WhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearlGold
