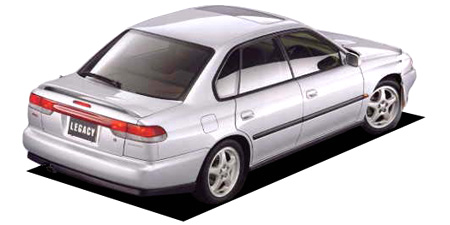

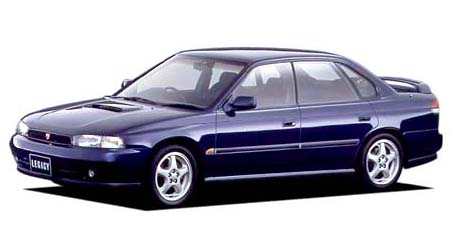

SUBARU LEGACY TX

SUBARU LEGACY

BD4 · TX

Description

Modification: TX
Chassis ID: BD4
Dates releasing: 1993.10~
Base price, ¥: E-BD4
Body size: 4595x1695x1405
Interior (LxWxH): 2010x1415x1155
Wheelbase: 2630
Track f/r: 1460mm/1455mm
Full weight, kg: 1130
Body type: Hardtop
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ◯
TRC: ◯
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: EJ20
Type: horizontally-opposed 4 cylinder SOHC 16-valves
Bore x stroke, mm: 92.0x75.0
Engine size, cc: 1994
Compression ratio: 9.5
Fuel injection: EGI(マルチポイントインジェクション)
Max power, hp/rpm: 125ps(92kW)/5500rpm
Max torque, Nm/rpm: 17.5kg m(172N m)/4500rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 7.7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Independent suspension
Rear suspension: Strut type Independent suspension
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 185/70R14 88S
Rear wheel: 185/70R14 88S
Min turn diameter, m: 5.3

Gearbox

Number of stages: 5MT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ◯
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.545	2.111	1.448	1.088	0.825	—	—	—	3.416

Available colors

blackwhite / Other whitegreen / Other greenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilverRedBlue / Other BlueDark cyanPearlGold
