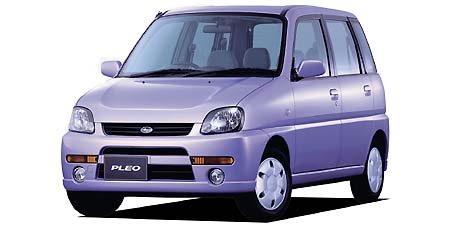

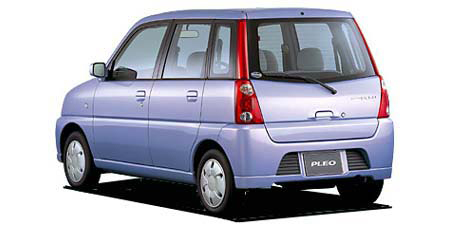

SUBARU PLEO F-S

SUBARU PLEO

RA2 · F-S

Description

Modification: F-S
Chassis ID: RA2
Dates releasing: 2002.10~
Base price, ¥: TA-RA2
Body size: 3395x1475x1550
Interior (LxWxH): 1685x1220x1255
Wheelbase: 2310
Track f/r: 1290mm/1265mm
Full weight, kg: 840
Body type: Key SUV
Doors / seats: 5 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ◯
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: 採用
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: EN07
Type: water cooling inline 4 cylinder SOHC
Bore x stroke, mm: 56.0x66.8
Engine size, cc: 658
Compression ratio: 10.5
Fuel injection: EGI(電子制御燃料噴射装置):マルチポイ&#
Max power, hp/rpm: 46ps(34kW)/6000rpm
Max torque, Nm/rpm: 5.9kg m(58N m)/5200rpm
Supercharger: ×
Fuel tank, liters: 32 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 5

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: L型ロアアーム Strut type Independent suspension
Rear suspension: デュアルリンク Strut type Independent suspension
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 145/70R12
Rear wheel: 145/70R12
Min turn diameter, m: 4.6

Gearbox

Number of stages: 5MT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ◯ / ◯
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.083	2.437	1.500	1.031	0.805	—	—	—	3.833

Available colors

black / Other blackwhite / Pure Whitegreen / Other greenMaroon (brown)OliveNavy blue / Other Navy bluePurple / Other PurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyanPearlGold
