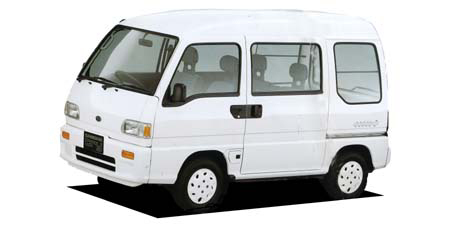

SUBARU SAMBAR TRY RJ EXTRA-S

SUBARU SAMBAR TRY

KV3 · RJ EXTRA-S

Description

Modification: RJ EXTRA-S
Chassis ID: KV3
Dates releasing: 1991.11~
Base price, ¥: V-KV3
Body size: 3295x1395x1890
Interior (LxWxH): ----x----x----
Wheelbase: 1885
Track f/r: 1205mm/1210mm
Full weight, kg: 840
Body type: Key SUV
Doors / seats: 5 door / 2

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ×
Central switch: ×
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: EN07
Type: water cooling inline 4 cylinder SOHC
Bore x stroke, mm: 56.0x66.8
Engine size, cc: 658
Compression ratio: 9.8
Fuel injection: キャブレター
Max power, hp/rpm: 40ps(29kW)/6500rpm
Max torque, Nm/rpm: 5.5kg m(53.9N m)/3500rpm
Supercharger: ×
Fuel tank, liters: 40 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Independent suspension
Rear suspension: セミトレーリングアーム type Independent suspension
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 145SR12
Rear wheel: 145SR12
Min turn diameter, m: 3.9

Gearbox

Number of stages: 5MT
Drive: RR
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ◯
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.090	2.470	1.615	1.125	0.861	—	—	—	4.166

Available colors

blackwhite / Other whitegreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearlGold
