SUBARU SAMBAR VAN VC SMART ASSIST

SUBARU SAMBAR VAN

S321B · VC SMART ASSIST

Description

Modification: VC SMART ASSIST
Chassis ID: S321B
Dates releasing: 2019.10~
Base price, ¥: EBD-S321B
Body size: 3395x1475x1875
Interior (LxWxH): ----x----x----
Wheelbase: 2450
Track f/r: 1305mm/1300mm
Full weight, kg: 940
Body type: Kei-cab van
Doors / seats: 5 door / 2

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ×
Additional equipment: VDC

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: KF
Type: inline 3 cylinder DOHC 12-valves
Bore x stroke, mm: 63.0x70.4
Engine size, cc: 658
Compression ratio: 11.3
Fuel injection: EGI(電子制御燃料噴射装置)
Max power, hp/rpm: 46ps(34kW)/5700rpm
Max torque, Nm/rpm: 6.1kg m(60N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 40 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 5.6

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: トレーリングリンク Axle Coil spring
Front brake: disk
Rear brake: Drum
Front wheel: 145/80R12
Rear wheel: 145/80R12
Min turn diameter, m: 4.2

Gearbox

Number of stages: 5MT
Drive: FR
LSD: ----

Exterior equipment

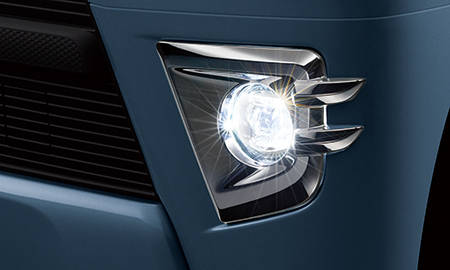

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.059	2.389	1.636	1.000	0.838	—	—	—	4.128

Available colors

black / Other blackwhite / Other whitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P) / Other Black (P)Magenta / Other MagentaSilver / Other SilverRedBlueDark cyan / Other Dark cyanPearl / Other PearlGold
