JDM Vehicle Catalog

Vehicle Specs

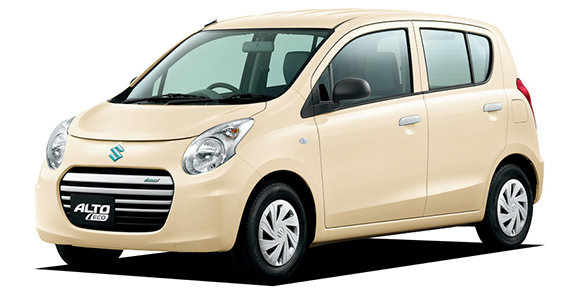

SUZUKI ALTO ECO ECO-L

SUZUKI ALTO ECO

HA35S · ECO-L

Description

Modification: ECO-L
Chassis ID: HA35S
Dates releasing: 2013.3~
Base price, ¥: DBA-HA35S
Body size: 3395x1475x1530
Interior (LxWxH): 1835x1260x1240
Wheelbase: 2400
Track f/r: 1295mm/1290mm
Full weight, kg: 760
Body type: Kei car
Doors / seats: 5 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: R06A
Type: water cooling inline 3 cylinder DOHC 12-valves
Bore x stroke, mm: 64.0x68.2
Engine size, cc: 658
Compression ratio: 11.0
Fuel injection: EPI(電子制御燃料噴射装置)
Max power, hp/rpm: 52ps(38kW)/6000rpm
Max torque, Nm/rpm: 6.4kg m(63N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 20 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 3.3

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: ITL
Front brake: disk
Rear brake: Drum
Front wheel: 145/80R13 75S
Rear wheel: 145/80R13 75S
Min turn diameter, m: 4.2

Gearbox

Number of stages: CVT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
4.006~0.550	—	—	—	—	—	—	—	—	3.771

Available colors

black / Bluish Black III Pearlwhite / Other whitegreenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Silver metallicRedBlueDark cyanPearlGold / Other Gold
