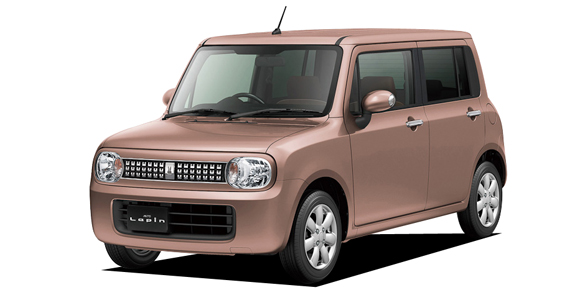

SUZUKI ALTO LAPIN 10TH ANNIVERSARY LIMITED

SUZUKI ALTO LAPIN

HE22S · 10TH ANNIVERSARY LIMITED

Description

Modification: 10TH ANNIVERSARY LIMITED
Chassis ID: HE22S
Dates releasing: 2012.5~
Base price, ¥: DBA-HE22S
Body size: 3395x1475x1520
Interior (LxWxH): 1915x1235x1215
Wheelbase: 2400
Track f/r: 1295mm/1290mm
Full weight, kg: 850
Body type: Kei car
Doors / seats: 5 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 14 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: K6A
Type: water cooling inline 3 cylinder DOHC 12-valves
Bore x stroke, mm: 68.0x60.4
Engine size, cc: 658
Compression ratio: 10.5
Fuel injection: EPI(電子制御燃料噴射)
Max power, hp/rpm: 54ps(40kW)/6500rpm
Max torque, Nm/rpm: 6.4kg m(63N m)/3500rpm
Supercharger: ×
Fuel tank, liters: 30 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 4.3

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: ITL
Front brake: disk
Rear brake: Drum
Front wheel: 155/65R14 75S
Rear wheel: 155/65R14 75S
Min turn diameter, m: 4.4

Gearbox

Number of stages: CVT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ◯
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
4.006~0.550	—	—	—	—	—	—	—	—	3.771

Available colors

black / Bluish Black III PearlwhitegreenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurpleAshesYellowYellow-green / Other Yellow-greenBlack (P) / Other Black (P)Magenta / Other MagentaSilverRedBlueDark cyanPearl / Pearl WhiteGold / Other Gold
